X232 Floor Console Harness to Instrument Panel Harness

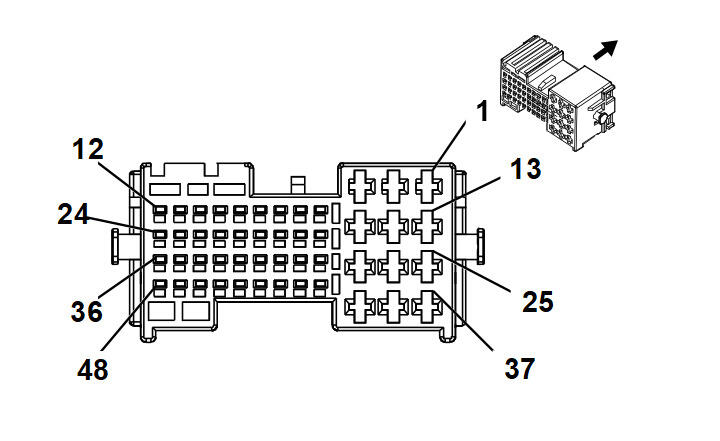

GM3924402Courtesy of GENERAL MOTORS COMPANY

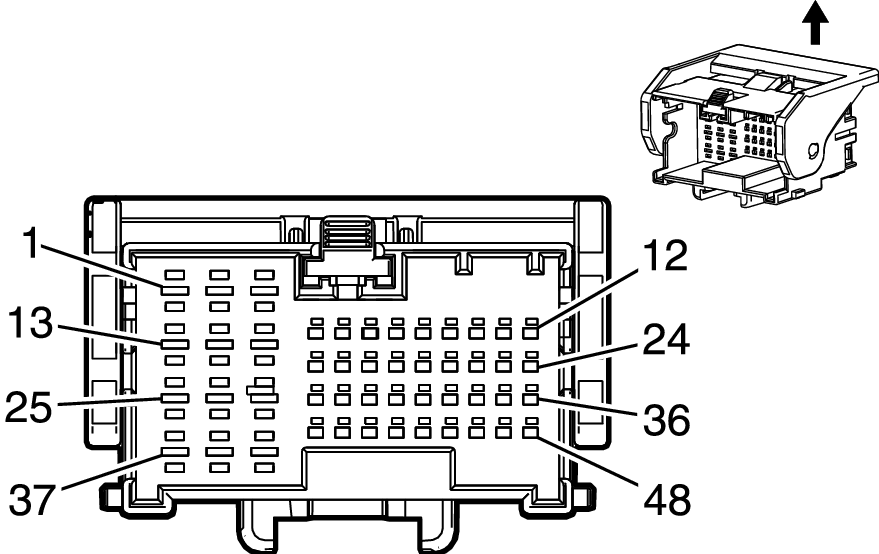

GM3960130Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 1-2109452-3
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 48-Way F 1.2 MCON, 2.8 MCP Series (GY)
 Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13582055
  • Service Connector: 19329738
  • Description: 48-Way M 1.2 MCON, 2.8 JPT Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-16 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-4A (PU) No Tool Required Not Required Not Required Not Required Not Required
III Not Required Not Available No Tool Required Not Required Not Required Not Required Not Required
IV 13505359 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
V 13575529 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VI 13575574 J-35616-5 (PU) J-38125-36 Not Available Not Available Not Available Not Available
VII 19329749 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
VIII Not Required No Tool Required J-38125-215A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.35 BK 1750 II - Ground 1 0.35 BK 1750 V -
2 0.35 RD/YE 5040 II - Battery Positive Voltage 2 0.35 RD/YE 5040 V -
3 0.35 BN 6107 II - Park Brake Apply Switch Signal 3 0.35 BN 6107 V -
4 0.35 BU/BK 6108 I - Park Brake Release Switch Signal 4 0.35 BU/BK 6108 VII -
5 0.35 YE/RD 7683 I - Park Brake Release Switch Voltage Reference 5 0.35 YE/RD 7683 VII -
6 0.35 YE 1492 I - Park Brake Switch Supply Voltage 6 0.35 YE 1492 VII -
7 0.5 YE 6817 I - LED Backlight Dimming Control 7 0.35 YE 6817 VII -
8 0.5 VT 801 III - Retained Accessory Power Fuse Control 8 0.5 VT 801 VIII -
9 0.35 GN/BK 2211 I CJ4 Rear Blower Motor Speed Control 9 0.35 GN/BK 2211 VII CJ4
10 - 11 - - - - - Not Occupied 10 - 11 - - - - -
12 0.35 BU/VT 1134 I - Park Brake Switch Signal 12 0.35 BU/VT 1134 VII -
13 0.5 BK 2250 II CJ4 Ground 13 2.5 BK 2250 VI CJ4
14 0.35 GN 4512 II K4C Wireless Charging System Charge Indicator Control 14 0.35 GN 4512 V K4C
15 0.5 RD/GN 3140 II CJ4 Battery Positive Voltage 15 0.5 RD/GN 3140 IV CJ4
16 - 24 - - - - - Not Occupied 16 - 24 - - - - -
25 0.5 YE/BU 5442 II CJ4 Endgate Window Regulator Up Signal 25 0.5 YE/BU 5442 IV CJ4
26 0.35 WH/YE 7557 II EF7/Z49/CV3 LED Ambient Lighting Control 1 26 0.35 WH/YE 7557 V EF7/Z49/CV3
27 - 28 - - - - - Not Occupied 27 - 28 - - - - -
29 0.35 WH 6816 I - Indicator Dimming Control 29 0.35 WH 6816 VII -
30 0.35 GY/RD 7684 I - Park Brake Apply Switch Voltage Reference 30 0.35 GY/RD 7684 VII -
31 0.35 GY/BK 3276 I - Vehicle Anti-Theft System Immobilizer Control 31 0.35 GY/BK 3276 VII -
32 0.35 GN/VT 7533 I - Local Interconnect Network Serial Data Bus 11 32 0.35 GN/VT 7533 VII -
33 0.35 GN/GY 3277 I - Vehicle Anti-Theft System Immobilizer Low Reference 33 0.35 GN/GY 3277 VII -
34 0.5 BU 3554 I - Passive Start Interior Antenna 2 Signal Hi 34 0.5 BU 3554 VII -
35 0.5 GY/BK 3555 I - Passive Start Interior Antenna 2 Signal Lo 35 0.5 GY/BK 3555 VII -
36 0.35 GN/YE 7531 I CJ4 Local Interconnect Network Serial Data Bus 9 36 0.35 GN/YE 7531 VII CJ4
37 1.5 VT 1301 II - Retained Accessory Power Fuse Control 37 1.5 VT 1301 VI -
38 1.5 BK 2250 II - Ground 38 1.5 BK 2250 VI -
39 1.5 VT 1701 II KC5 Retained Accessory Power Ignition 39 1.5 VT 1701 VI KC5
40 0.5 VT 4083 I MHG/M3T RAP Relay 2 Coil Control 40 0.5 GY/GN 4083 VII MHG/M3T
41 - - - - - Not Occupied 41 - - - - -
42 0.5 RD/WH 5440 I - Battery Positive Voltage 42 0.35 RD/WH 5440 VII -
43 - - - - - Not Occupied 43 - - - - -
44 0.5 GN/BU 6133 I M3T/MHG Local Interconnect Network Serial Data Bus 2 44 0.35 GN/BU 6133 VII M3T/MHG
45 0.5 BN 404 I CJ4 Upper Air Temperature Sensor Signal 45 0.35 BN 404 VII CJ4
46 0.5 BK/GN 7567 I CJ4 Solar Sensor Low Reference 46 0.35 GN 7567 VII CJ4
47 - - - - - Not Occupied 47 - - - - -
48 0.35 BU/VT 1788 I - Traction Control Switch Signal 1 48 0.35 BU/VT 1788 VII -
