Instrument Panel Airbag Disable Switch Replacement

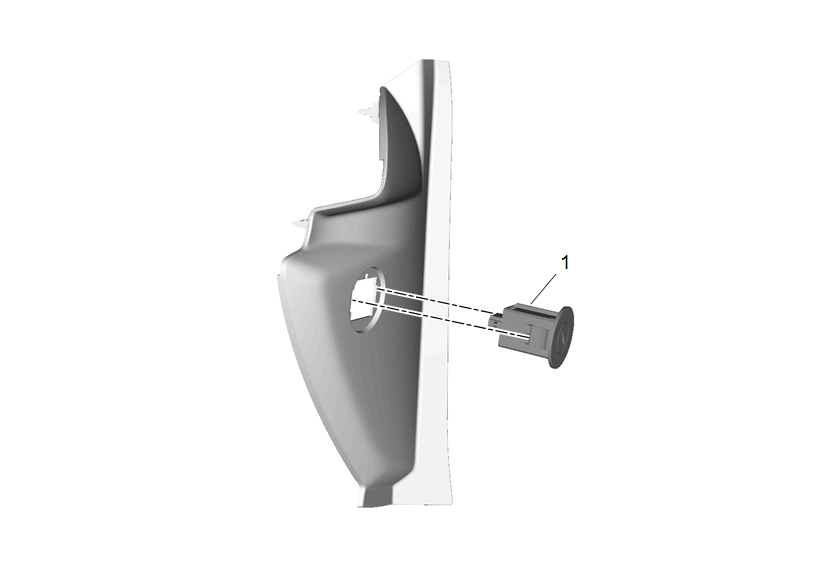

GM4624452Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

SIR Warning

Preliminary Procedures

  1. Refer to SIR Disabling and Enabling
  2. Refer to Instrument Panel Outer Trim Cover Replacement
1 Instrument Panel Airbag Disable Switch
WARNING:

Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed, and its function is not verified, the airbag may discharge improperly and cause personal injury or death.

Procedure

  1. Disconnect the electrical connector.
  2. Unlock the retaining tabs.
