Instrument Panel Outer Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

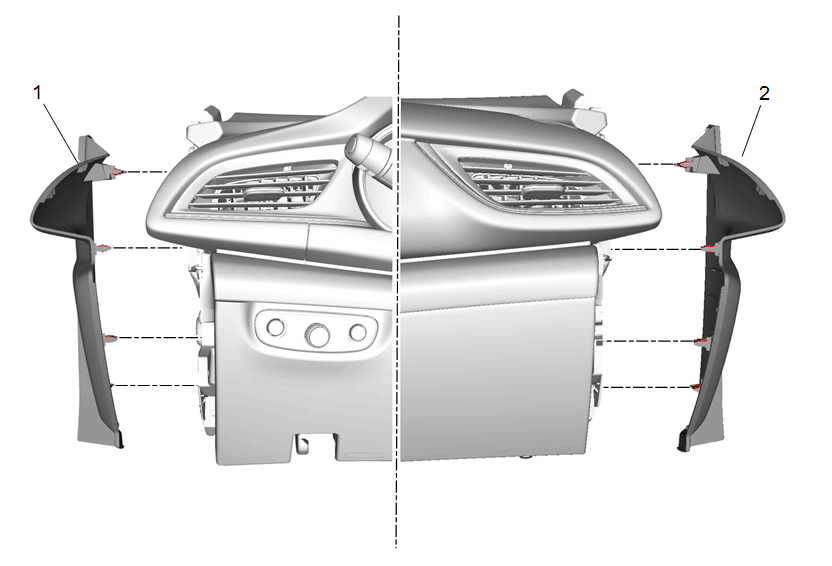

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Instrument Panel Outer Trim Cover - Left Side Procedure Use a flat bladed plastic trim tool.
2	Instrument Panel Outer Trim Cover - Right Side WARNING: Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed, and its function is not verified, the airbag may discharge improperly and cause personal injury or death. Procedure If equipped, remove the airbag disable switch. Instrument Panel Airbag Disable Switch Replacement . Use a flat bladed plastic trim tool.

Callout

Component Name

Instrument Panel Outer Trim Cover - Left Side
Procedure
Use a flat bladed plastic trim tool.

Instrument Panel Outer Trim Cover - Right Side

WARNING:

Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed, and its function is not verified, the airbag may discharge improperly and cause personal injury or death.

Procedure

If equipped, remove the airbag disable switch. Instrument Panel Airbag Disable Switch Replacement .
Use a flat bladed plastic trim tool.
