Front Floor Console Rear Air Outlet Replacement

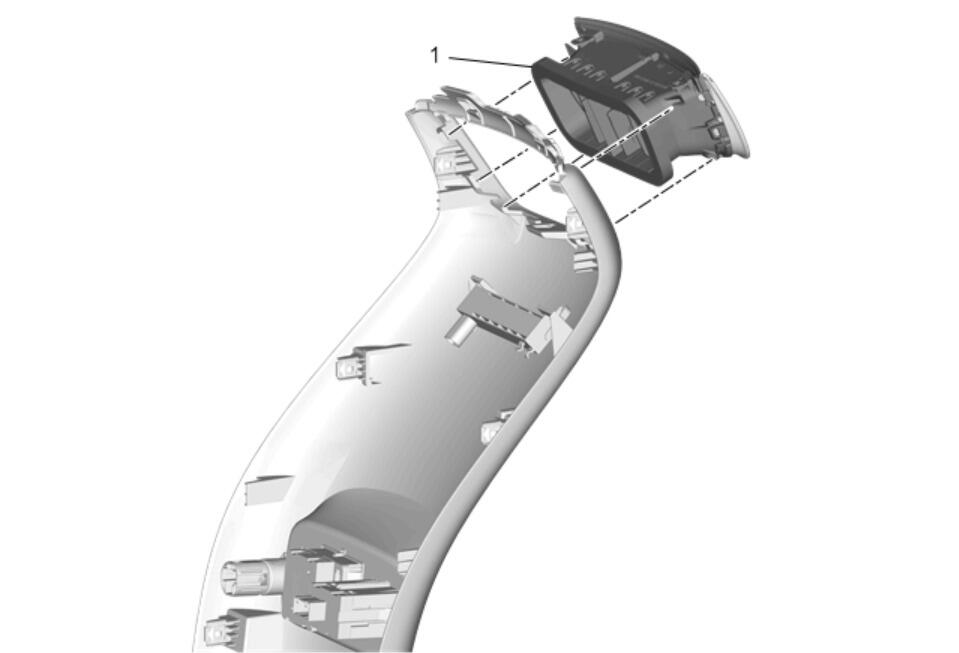

GM4233866Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Front Floor Console Rear Air Outlet

Procedure

  1. Release the plastic retaining tabs.
  2. Transfer components as necessary.
