Front Floor Console Rear Air Front Duct Replacement

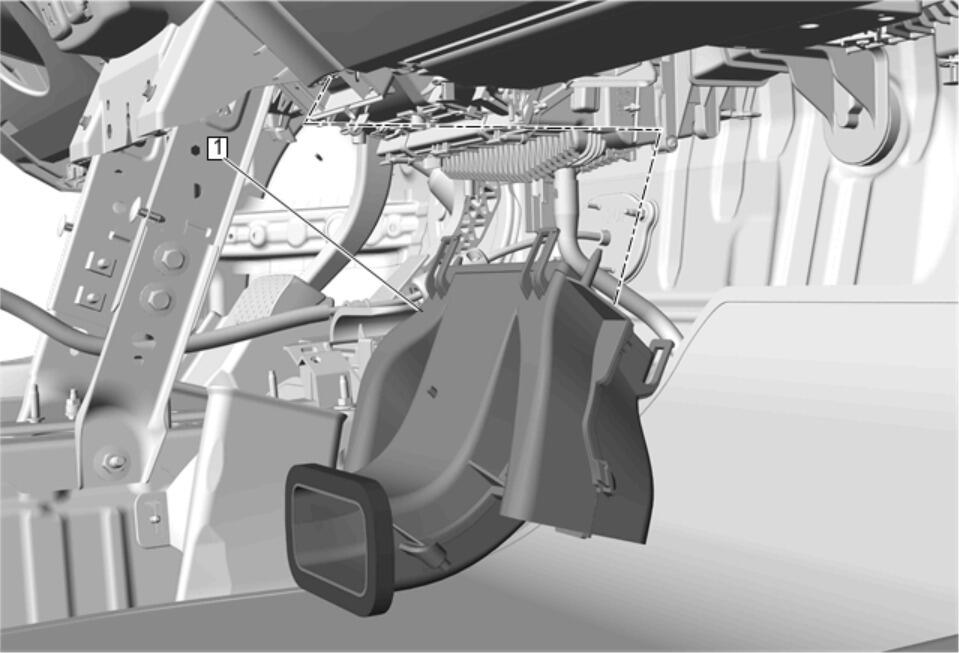

GM4218651Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Front Floor Console Replacement
  2. Instrument Panel Compartment Air Duct Replacement
1 Front Floor Console Rear Air Front Duct
Procedure
Unlock the retaining tabs.
