Intake Air Duct Replacement

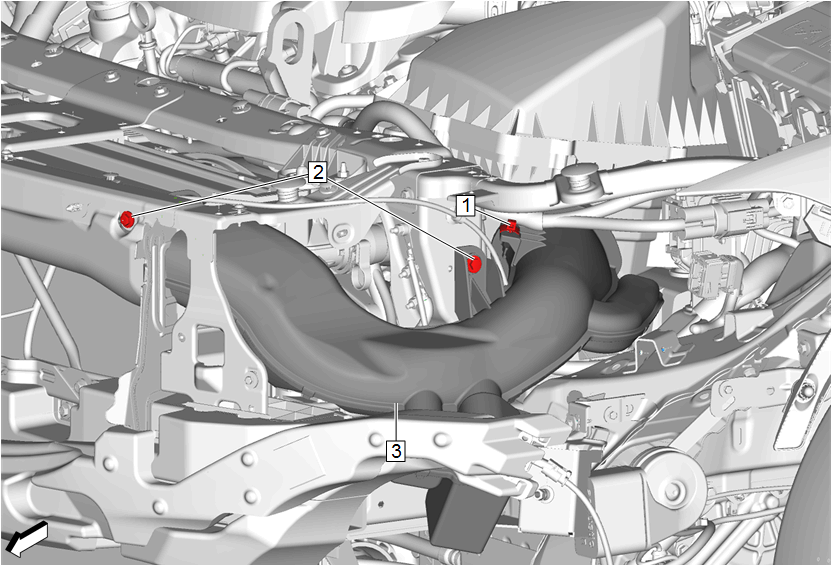

GM4808587Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia - Remove - Front Bumper Fascia Replacement
  2. Headlamp - Remove - Headlamp Replacement
1 Strap
2 Intake Air Duct Bolt[2x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
3 Intake Air Duct

Procedure

  1. Headlamp - Install - Headlamp Replacement
  2. Front Bumper Fascia - Install - Front Bumper Fascia Replacement
