Headlamp Replacement

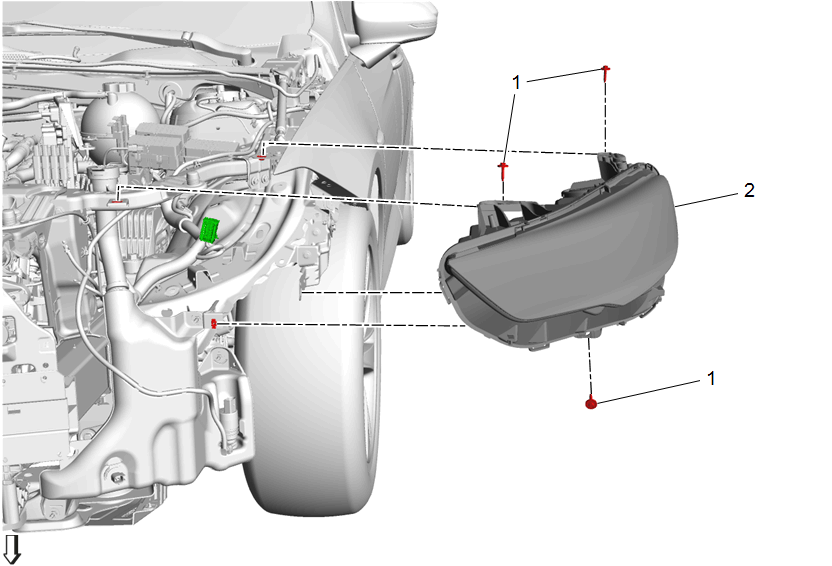

GM4605406
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Headlamp Opening Bracket Replacement
1 Headlamp Bolt [3x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Headlamp

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
  3. After installation, program the headlamp control module. Control Module References
  4. After installation, aim the headlamp if necessary. Headlamp Aiming
