Air Cleaner Bracket Replacement

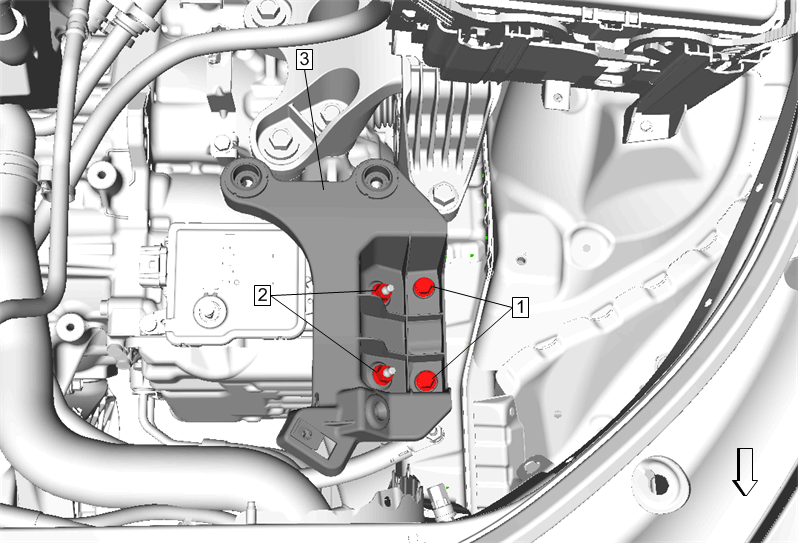

GM4451509Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Assembly Replacement
  2. Intake Air Duct Replacement
1 Air Cleaner Bracket Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Cleaner Bracket Nut [2x]
Tighten
22 N.m (16 lb ft)
3 Air Cleaner Bracket
