Front Side Door Sill Garnish Molding Replacement

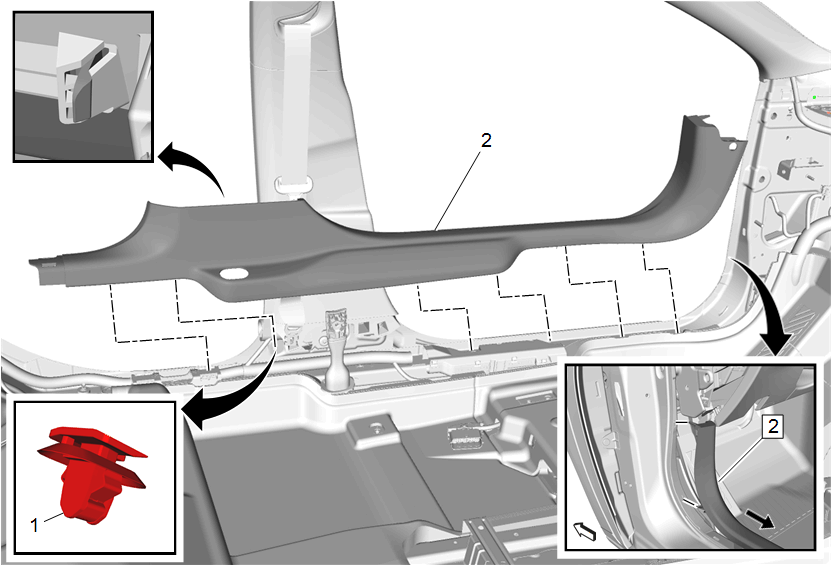

GM4641112
Callout Component Name

Preliminary Procedures

  1. Rear Side Door Sill Garnish Molding Replacement
  2. Remove front seat belt from front seat belt anchor. Front Seat Belt Retractor Replacement
  3. Instrument Panel Outer Trim Cover Replacement
1 Front Side Door Sill Garnish Molding Retainer [5x]
Procedure
Use a flat bladed plastic tool to remove.
2 Front Side Door Sill Garnish Molding

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Pull the front side door sill garnish molding backwards.
  3. Disconnect the electrical connector.
  4. Front Floor Flood Lamp - Remove
