Instrument Panel Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

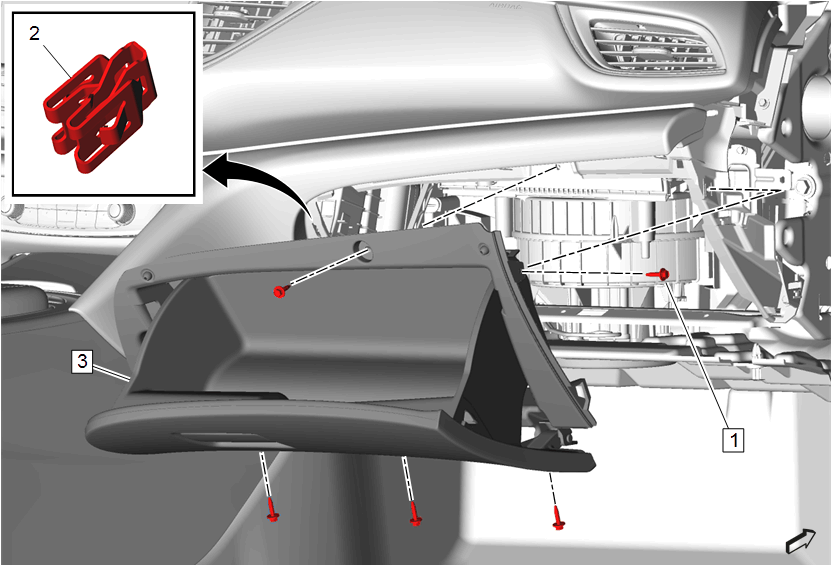

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Airbag Replacement - Passenger Side Instrument Panel Lower Trim Panel Insulator Replacement Instrument Panel Outer Trim Cover Replacement
1	Instrument Panel Compartment Bolt [5x] CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Instrument Panel Compartment Fastener [3x] Procedure Use a flat bladed plastic tool to remove.
3	Instrument Panel Compartment Procedure Disconnect all electrical connectors.
