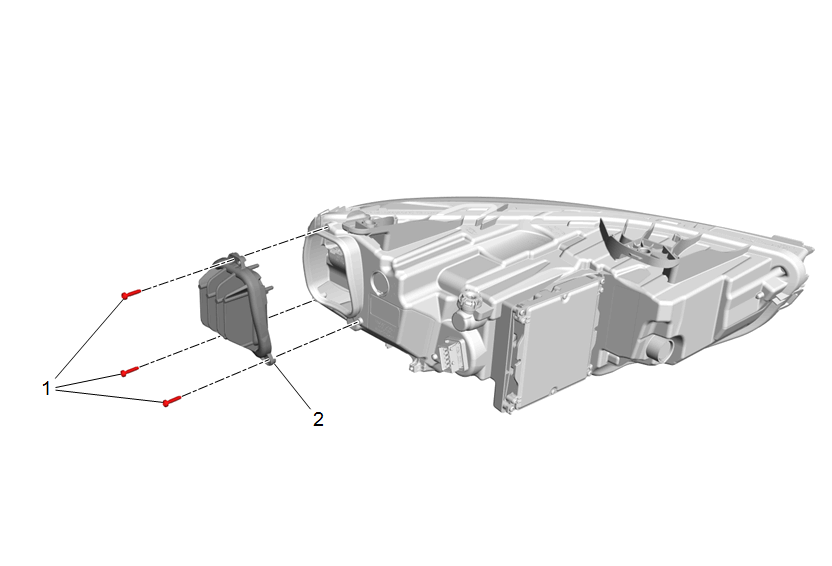

Headlamp LED Driver Module Replacement

Callout	Component Name
Preliminary Procedure Headlamp Replacement
1	Headlamp LED Driver Module Screw [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Headlamp LED Driver Module Procedure Disconnect the electrical connector. After installation, aim the headlamps. Headlamp Aiming

Callout

Component Name

Preliminary Procedure
Headlamp Replacement

Headlamp LED Driver Module Screw [3x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp LED Driver Module

Procedure
