Rear Axle Harness Routing View (F46)

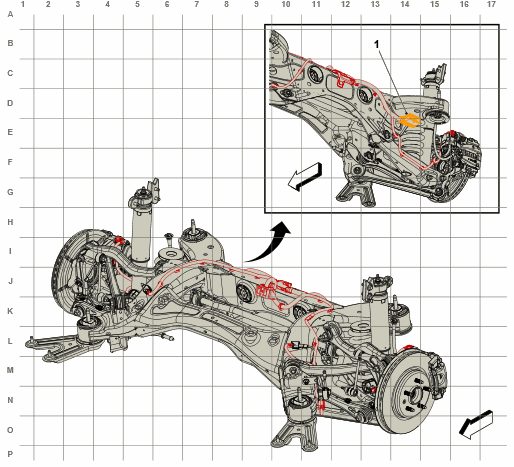

GM4623207Courtesy of GENERAL MOTORS COMPANY
Items
1 X408 Body Harness to Chassis Harness X408 Body Harness to Rear Axle Harness (GNQ)X408 Rear Axle Harness to Body Harness (GNC)
2 X412 Rear Axle Harness to Left Rear Wheel Speed Sensor Jumper Harness X412 Rear Axle Harness to Left Rear Wheel Speed Sensor Jumper Harness
3 X413 Rear Axle Harness to Right Rear Wheel Speed Sensor Jumper Harness X413 Rear Axle Harness to Right Rear Wheel Speed Sensor Jumper Harness
