Instrument Panel Trim Plate Replacement

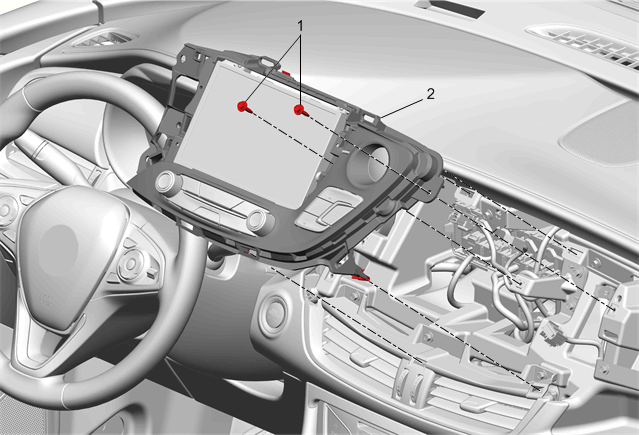

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Plate Applique Replacement - Right Side
1	Instrument Panel Accessory Bezel Bolt [ 2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Trim Plate Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Instrument Panel Accessory Bezel Bolt [ 2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Trim Plate

Procedure
