Rear Bumper Fascia Reflector Replacement

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement (Chevrolet) Rear Bumper Fascia Replacement (Buick) Place the bumper fascia face down on a clean protective surface. Reposition the wiring harness.

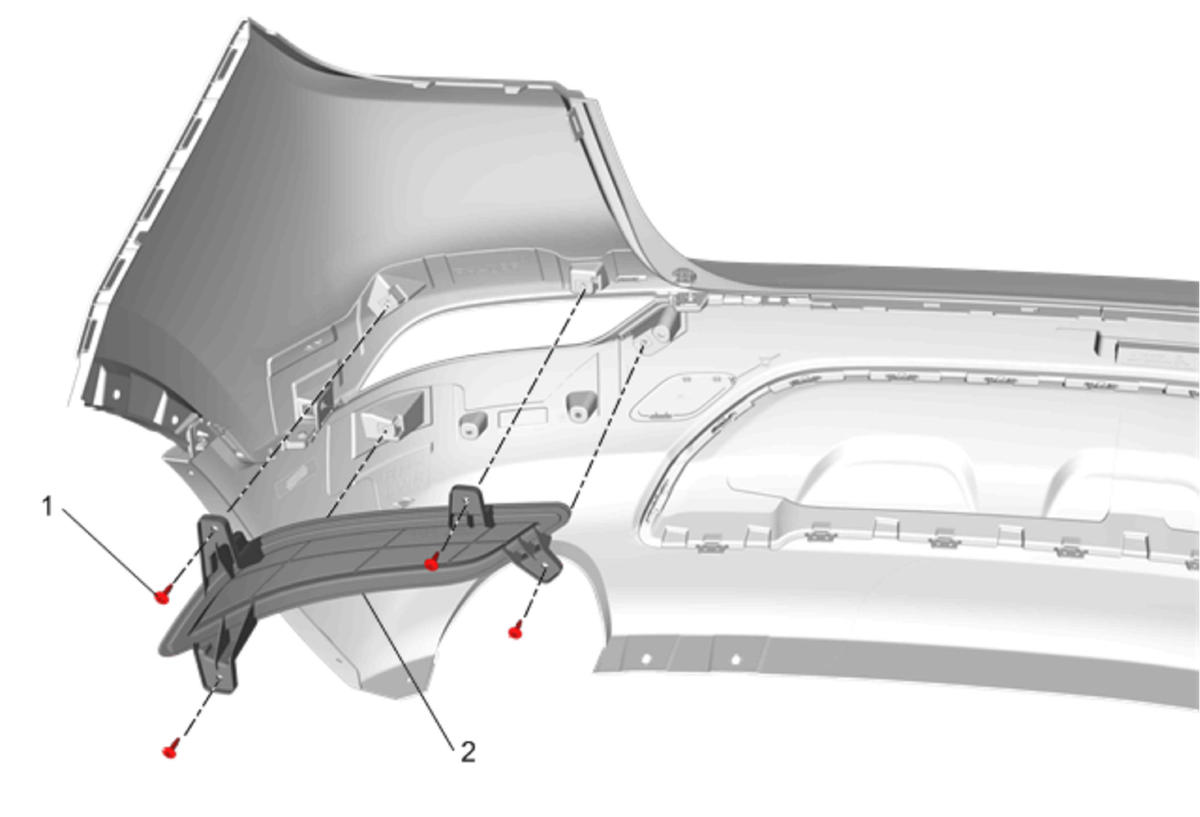

1	Rear Bumper Fascia Reflector Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Fascia Reflector

Callout

Component Name

Preliminary Procedures

Rear Bumper Fascia Replacement (Chevrolet) Rear Bumper Fascia Replacement (Buick)
Place the bumper fascia face down on a clean protective surface.
Reposition the wiring harness.

Rear Bumper Fascia Reflector Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Bumper Fascia Reflector
