Rear Bumper Lower Fascia Replacement (Chevrolet)

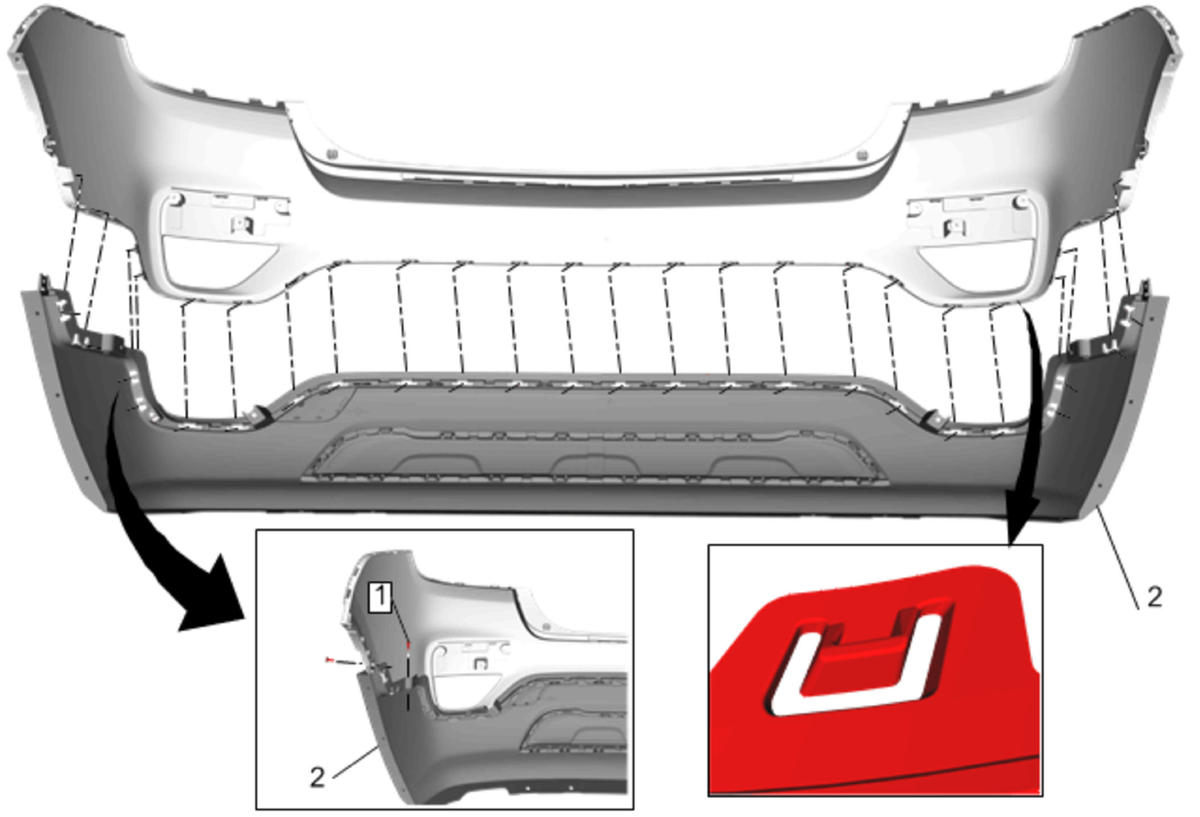

GM4525167
Callout Component Name

Preliminary Procedure

  1. Rear Bumper Fascia Replacement (Chevrolet)
  2. Rear Fascia Signal Lamp Replacement (Chevrolet)
1 Rear Bumper Fascia Lower Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Bumper Lower Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
