Rear Bumper Lower Fascia Replacement (Buick)

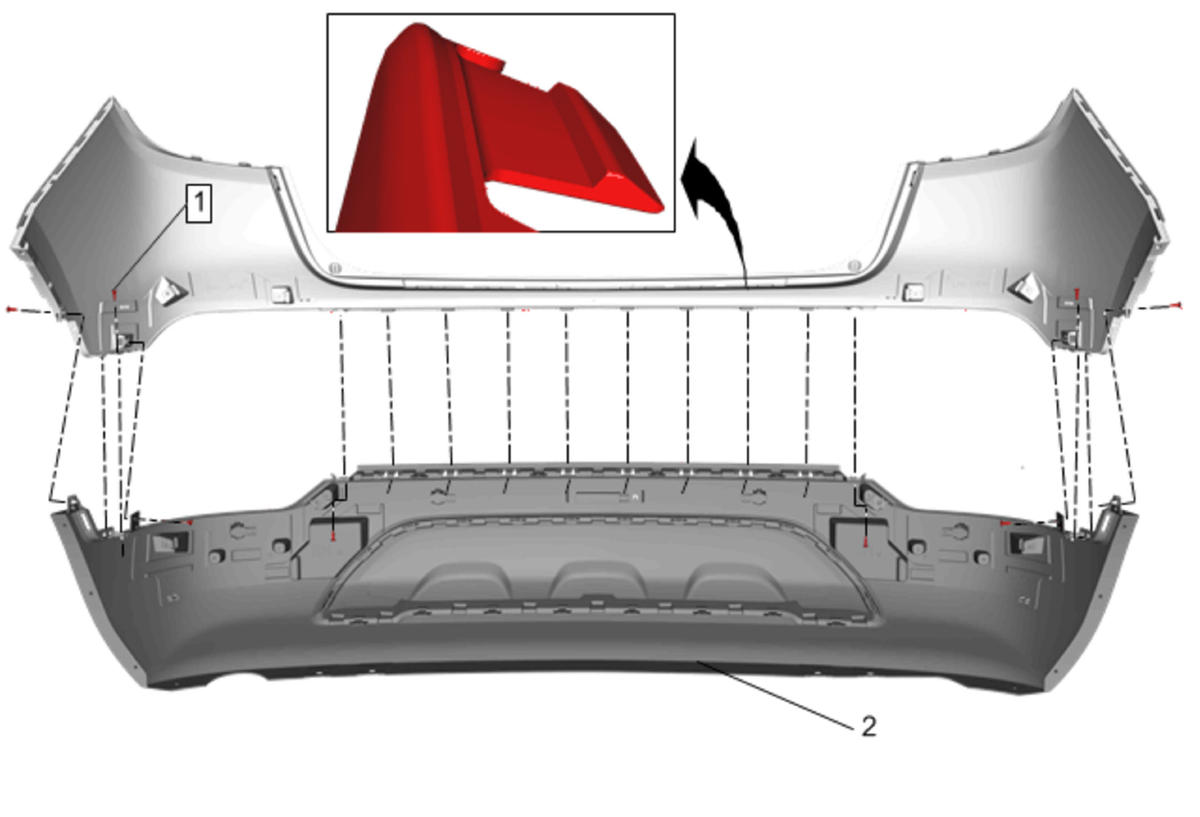

GM4336661
Callout Component Name

Preliminary Procedure

  1. Rear Bumper Fascia Reflector Replacement
  2. Reposition the wiring harness.
1 Rear Bumper Fascia Lower Bolt [8x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Bumper Lower Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.
  2. Transfer components as necessary.
