Rear Turn Signal Lamp Bulb Replacement (Chevrolet with TVM)

Callout	Component Name
Preliminary Procedure Reposition and support the tail lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet with TVM) .

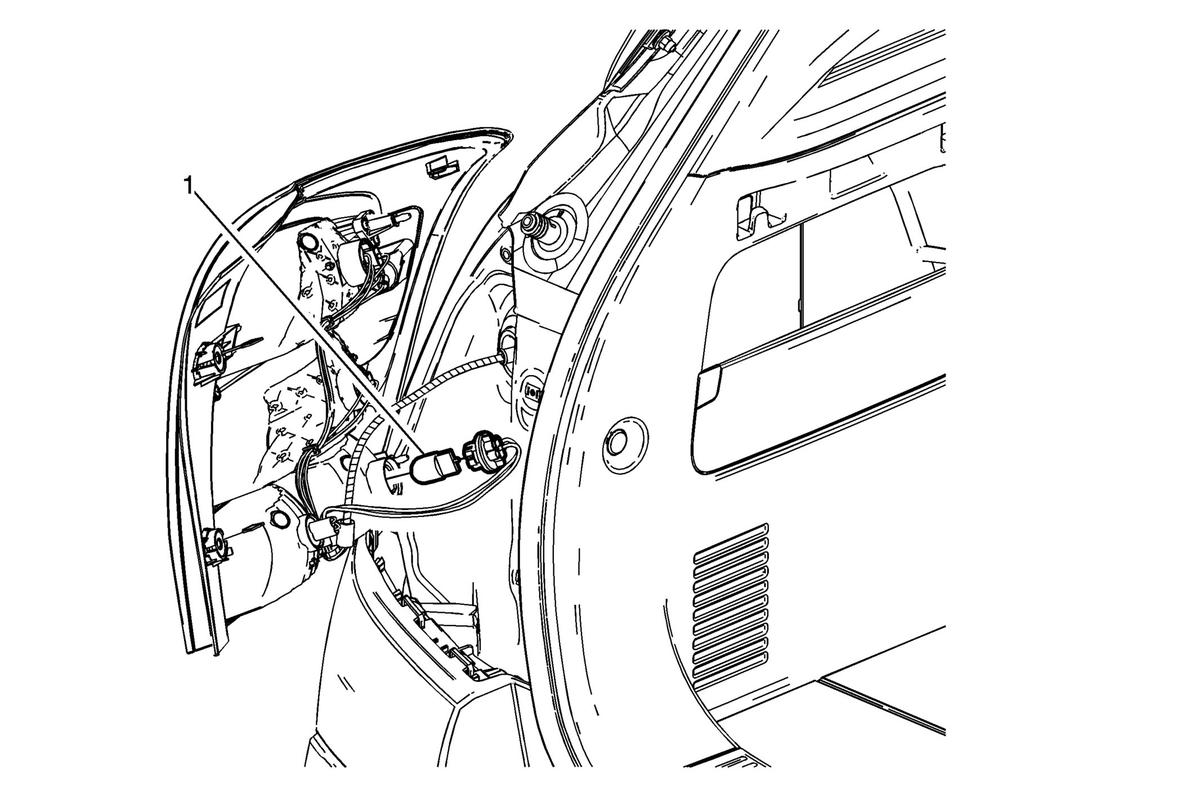

1	Rear Turn Signal Lamp Bulb Procedure Rotate the rear turn signal lamp socket counter-clockwise and remove from the tail lamp. Pull the rear turn signal lamp bulb straight out from the rear turn signal lamp socket.

Callout

Component Name

Preliminary Procedure
Reposition and support the tail lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet with TVM) .

Rear Turn Signal Lamp Bulb

Procedure

Rotate the rear turn signal lamp socket counter-clockwise and remove from the tail lamp.
Pull the rear turn signal lamp bulb straight out from the rear turn signal lamp socket.
