Rear Body Structure Stop Lamp Replacement (Chevrolet with TVM)

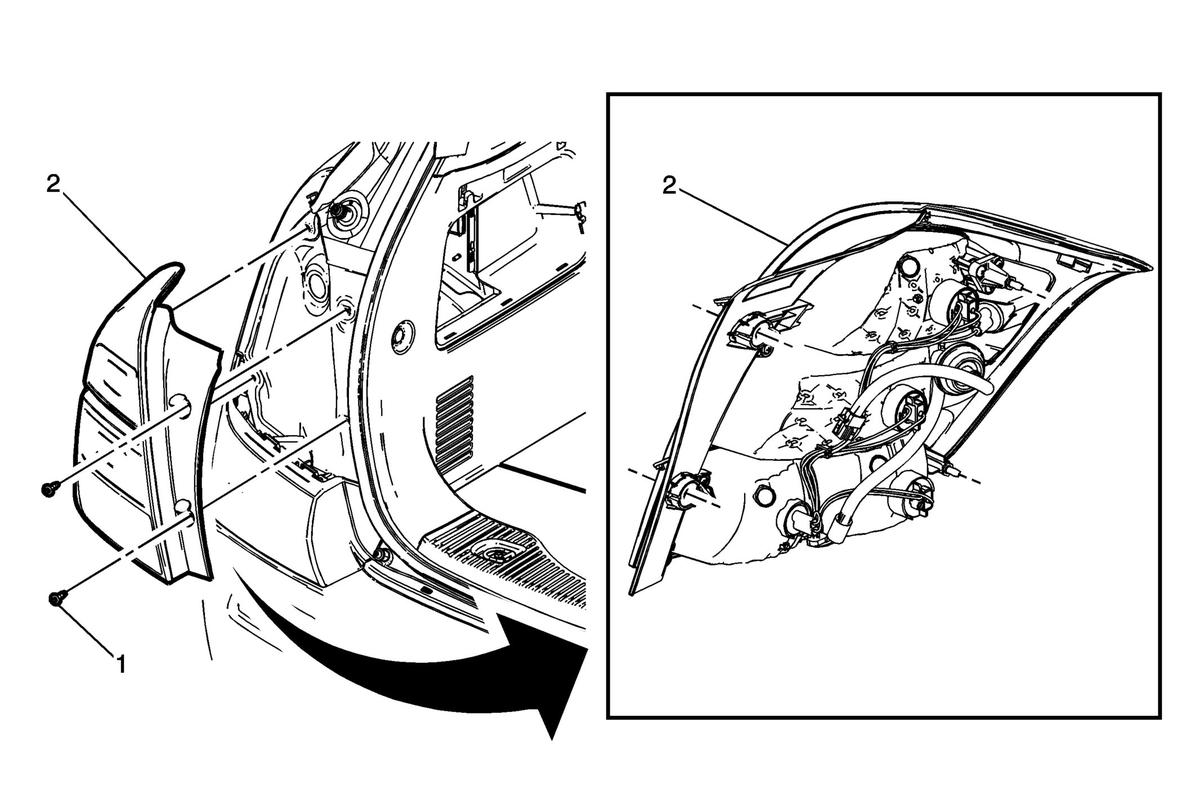

GM3405344
Callout Component Name

Preliminary Procedures

  1. Open and support the liftgate.
  2. Remove quarter stowage pocket door. Refer to Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) .
1 Rear Body Structure Stop Lamp Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Body Structure Stop Lamp

Procedure

  1. Hold both sides of the stop lamp and carefully pull the lamp reward in order to disengage the two locator pins and the retainer from the bodyside outer frame.
  2. Disengage the stop lamp harness grommet.
  3. Disconnect the electrical connector.
