Headlamp Bulb Replacement - Left Side (SBM with Low Beam)

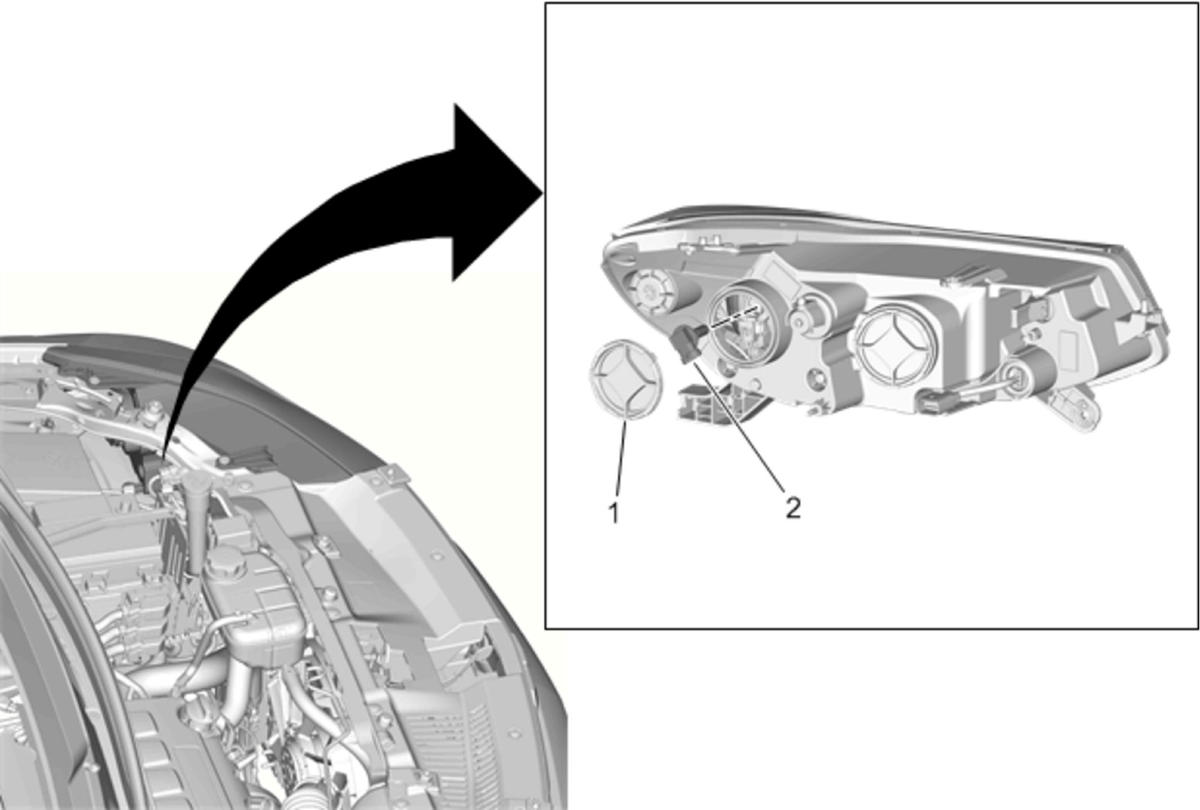

Callout	Component Name
Preliminary Procedures Open and support the hood. Windshield Washer Solvent Container Filler Tube Replacement
1	Headlamp Bulb Access Cover Procedure Rotate the bulb access cover counterclockwise to remove it from the lamp housing.
2	Headlamp Bulb - Left Side WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the bulb a quarter turn counterclockwise and remove.

Callout

Component Name

Preliminary Procedures

Headlamp Bulb Access Cover
Procedure
Rotate the bulb access cover counterclockwise to remove it from the lamp housing.

Headlamp Bulb - Left Side

WARNING:

Procedure
