Daytime Running and Parking/Position Lamp Bulb Replacement (Left Side with SBM)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Windshield Washer Solvent Container Filler Tube Replacement |
|

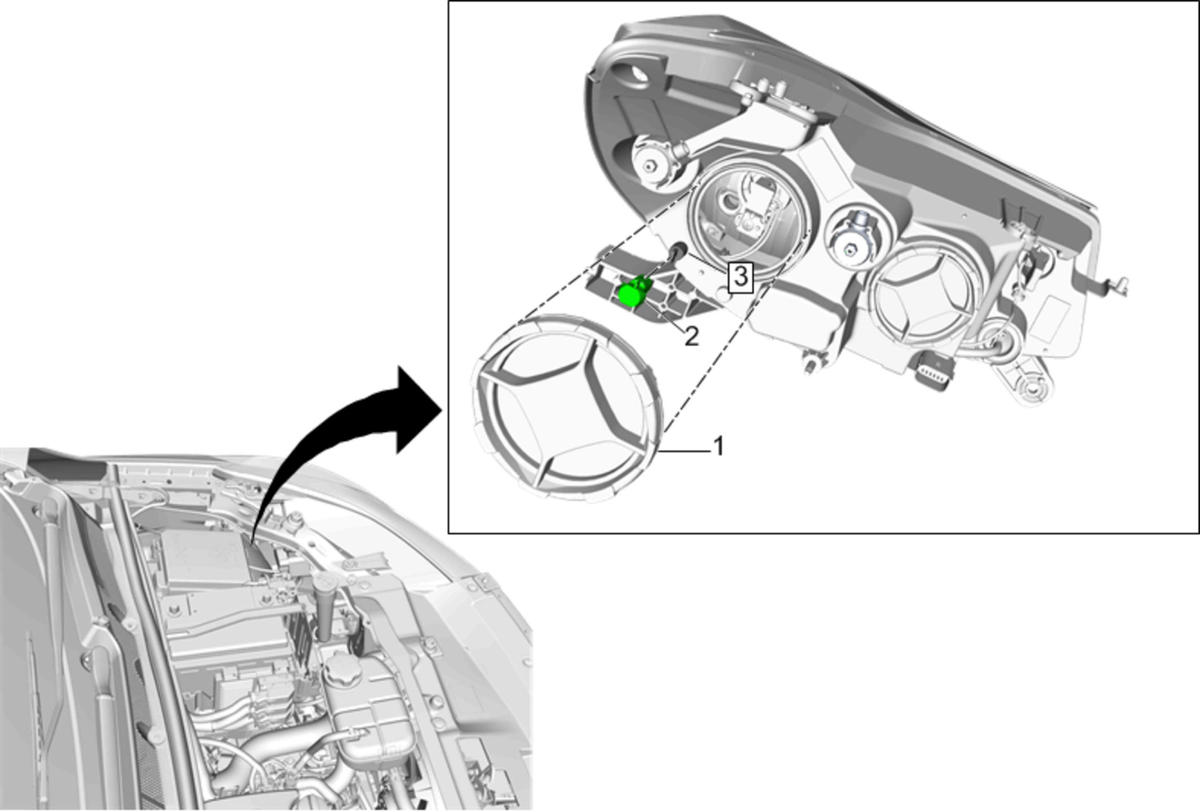

| 1 | Headlamp Bulb Access Cover Procedure Rotate the bulb access cover counterclockwise to remove it from the lamp housing. |
| 2 | Daytime Running Lamp Bulb Socket Procedure Pull the bulb socket from the headlamp. |
| 3 | Daytime Running Lamp Bulb - Left Side Procedure Pull the bulb from the bulb socket. |
