Rear Center Seat Belt Retractor Replacement

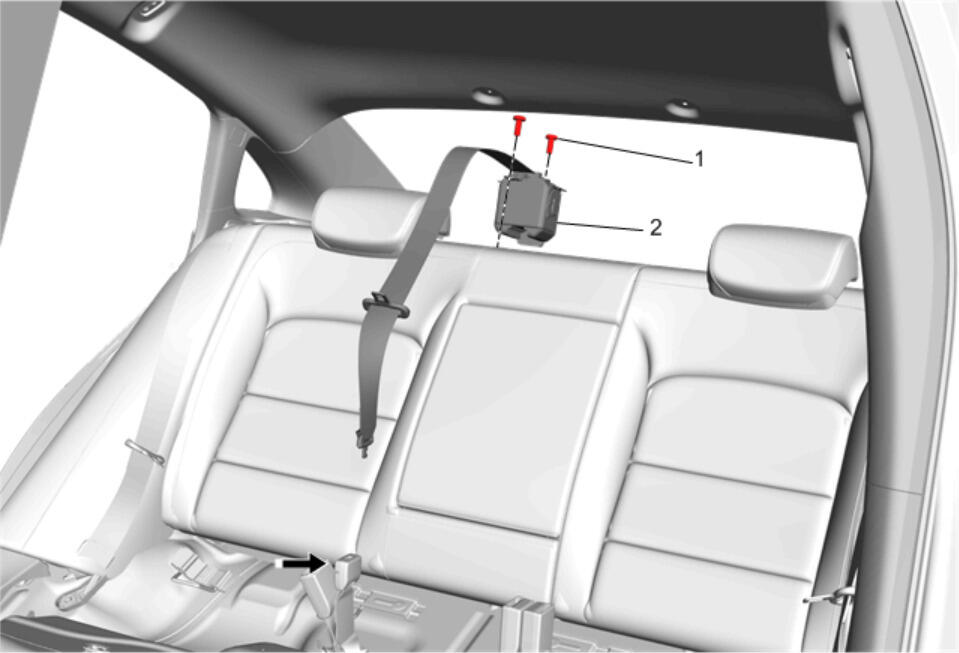

Fig 1: Rear Center Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3) Rear Center Seat Belt Opening Bezel Replacement
1	Rear Center Seat Belt Retractor Fastener[2x] CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Center Seat Belt Retractor Procedure Using a suitable tool, press the button to release the belt from the mini buckle.

Callout

Component Name

Preliminary Procedures

Rear Center Seat Belt Retractor Fastener[2x]

CAUTION:

Tighten
45 N.m (33 lb ft)

Rear Center Seat Belt Retractor
Procedure
Using a suitable tool, press the button to release the belt from the mini buckle.
