Rear Window Panel Trim Replacement (With DB3)

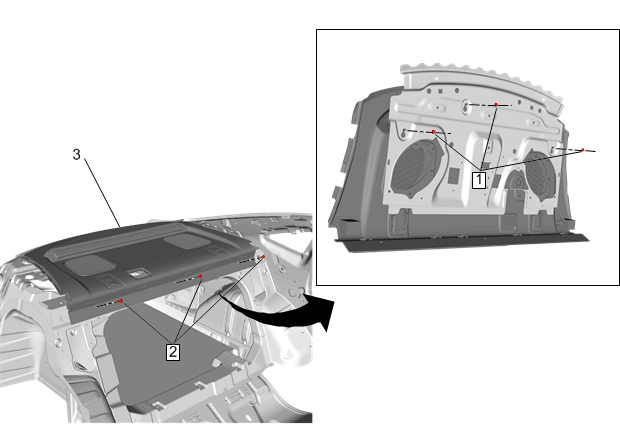

Fig 1: Rear Window Panel Trim (With DB3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Quarter Window Trim Finish Panel Replacement
1	Rear Window Inside Sunshade Nut CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Rear Window Panel Trim Retainer
3	Rear Window Panel Trim Procedure  Disconnect the electrical connector.
