Airbag Sensing and Diagnostic Module Replacement

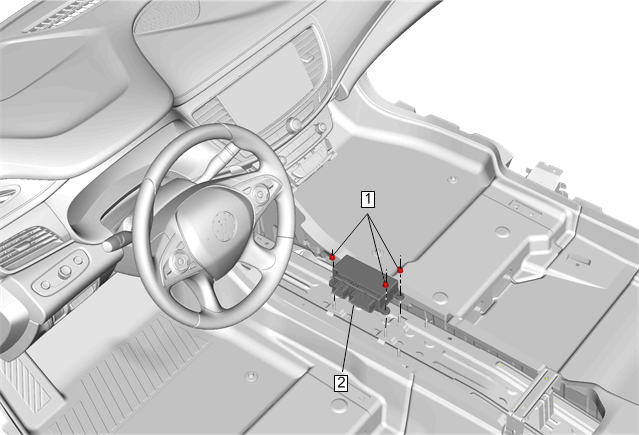

Fig 1: Airbag Sensing And Diagnostic Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Do not strike or jolt the inflatable restraint Sensing and Diagnostic Module (SDM). Before applying power to the SDM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs. Preliminary Procedures SIR Disabling and Enabling Front Floor Console Replacement
1	Airbag Sensing and Diagnostic Module Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Airbag Sensing and Diagnostic Module Procedure Disconnect the electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Do not strike or jolt the inflatable restraint Sensing and Diagnostic Module (SDM). Before applying power to the SDM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

Preliminary Procedures

SIR Disabling and Enabling
Front Floor Console Replacement

Airbag Sensing and Diagnostic Module Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Airbag Sensing and Diagnostic Module

Procedure

Disconnect the electrical connectors.
Control Module References for programming and setup information, if required.
