Instrument Cluster Replacement

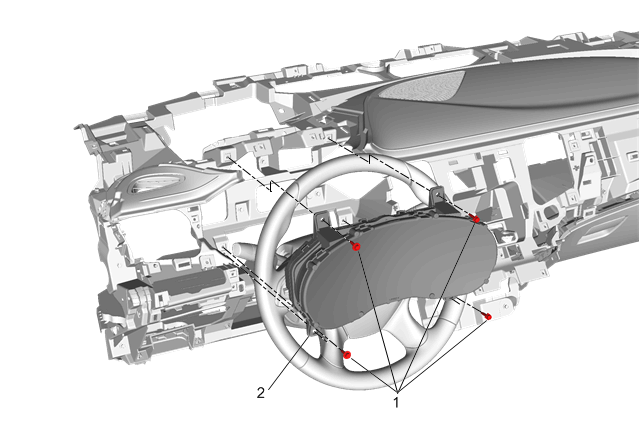

Fig 1: Instrument Cluster
GM4324117Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Cluster Trim Plate Replacement
1 Instrument Cluster Bolt
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Instrument Cluster
Procedure
Disconnect electrical connectors.
