Rear Seat Cushion Removal and Installation

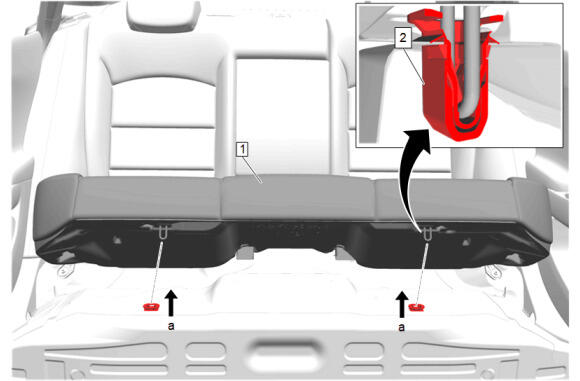

Fig 1: Rear Seat Cushion

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the rear center seat belt from the mini buckle. Rear Center Seat Belt Retractor Replacement
1	Rear Seat Cushion Procedure Insert a 457 mm (18 in) prybar next to the inboard side of each wire loop and push down, using the floor as leverage, to disengage the retainers. Pull up on the front of the seat cushion and lift out of the vehicle. Inspect each high retention retainer and sheet metal interface for flushness. Replace retainer as required if damage occurs during removal. When installing new plastic retainers on the front of the seat, ONLY seat the retainer to the first click, otherwise the insertion force into the sheet metal will be greatly increased.

Callout

Component Name

Preliminary Procedure
Disconnect the rear center seat belt from the mini buckle. Rear Center Seat Belt Retractor Replacement

Rear Seat Cushion

Procedure

Insert a 457 mm (18 in) prybar next to the inboard side of each wire loop and push down, using the floor as leverage, to disengage the retainers.
Pull up on the front of the seat cushion and lift out of the vehicle.
Inspect each high retention retainer and sheet metal interface for flushness. Replace retainer as required if damage occurs during removal.
When installing new plastic retainers on the front of the seat, ONLY seat the retainer to the first click, otherwise the insertion force into the sheet metal will be greatly increased.
