Rear Seat Belt Guide Trim Cover Replacement

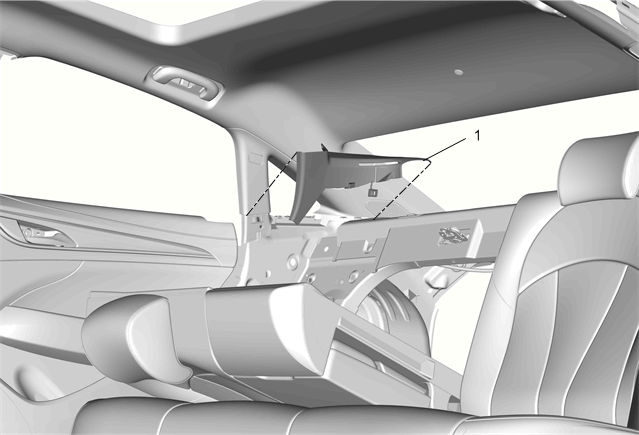

Fig 1: Rear Seat Belt Guide Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Back Bolster Replacement
1	Rear Seat Belt Guide Trim Cover Procedure Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward. Remove the rear seat belt guide trim cover using a suitable flat-bladed tool.

Callout

Component Name

Rear Seat Belt Guide Trim Cover

Procedure

Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward.
Remove the rear seat belt guide trim cover using a suitable flat-bladed tool.
