Rear Seat Back Bolster Replacement

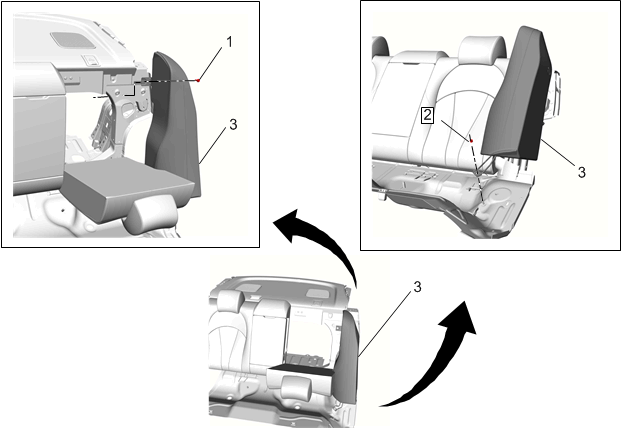

Fig 1: Rear Seat Back Bolster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure SIR Disabling and Enabling Rear Seat Cushion Removal and Installation
1	Rear Seat Back Bolster Fastener CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Rear Seat Back Bolster Nut CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
3	Rear Seat Back Bolster
