Rear Seat Back Cushion Removal and Installation - Left Side

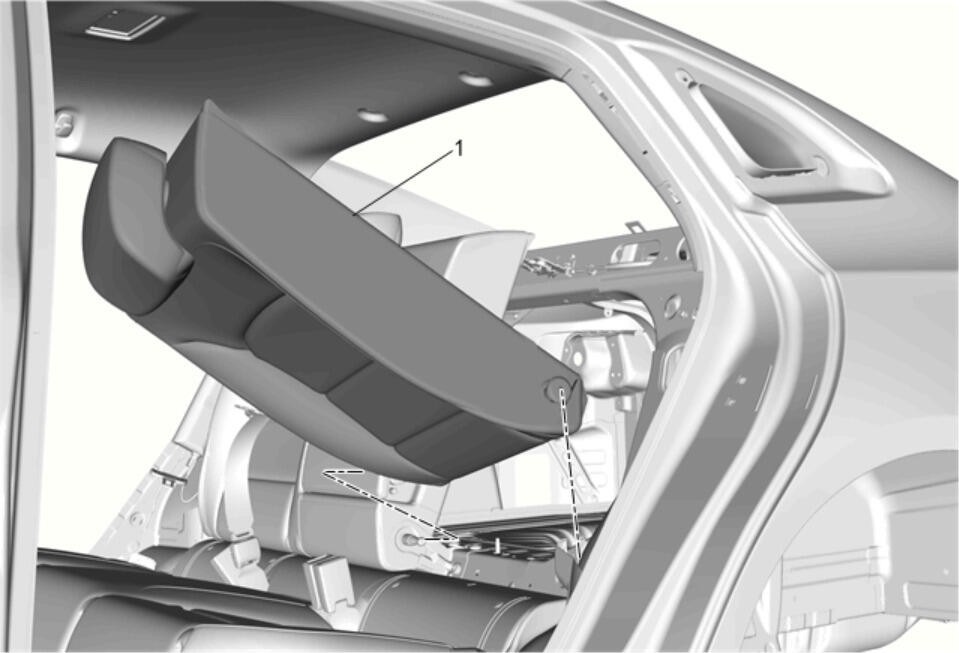

Fig 1: Rear Seat Back Cushion - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Seat Cushion Removal and Installation
1	Rear Seat Back Cushion Procedure  Pull up on the outer side of the rear seat back cushion and remove the rear seat back cushion from the bracket and hinge.
