Quarter Window Trim Finish Panel Replacement

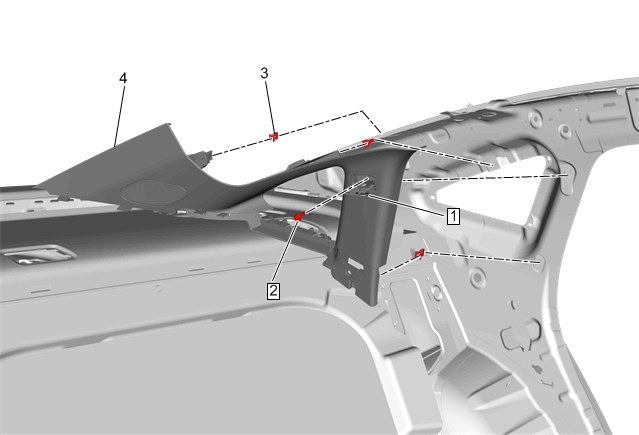

Fig 1: Quarter Window Trim Finish Panel
GM4324876Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Belt Guide Trim Cover Replacement
1 Quarter Window Trim Finish Panel Bolt Cap
2 Quarter Window Trim Finish Panel Bolt
CAUTION:

Fastener Caution
3 Quarter Window Trim Finish Panel Clip
4 Quarter Window Trim Finish Panel
