Center Pillar Upper Trim Panel Replacement

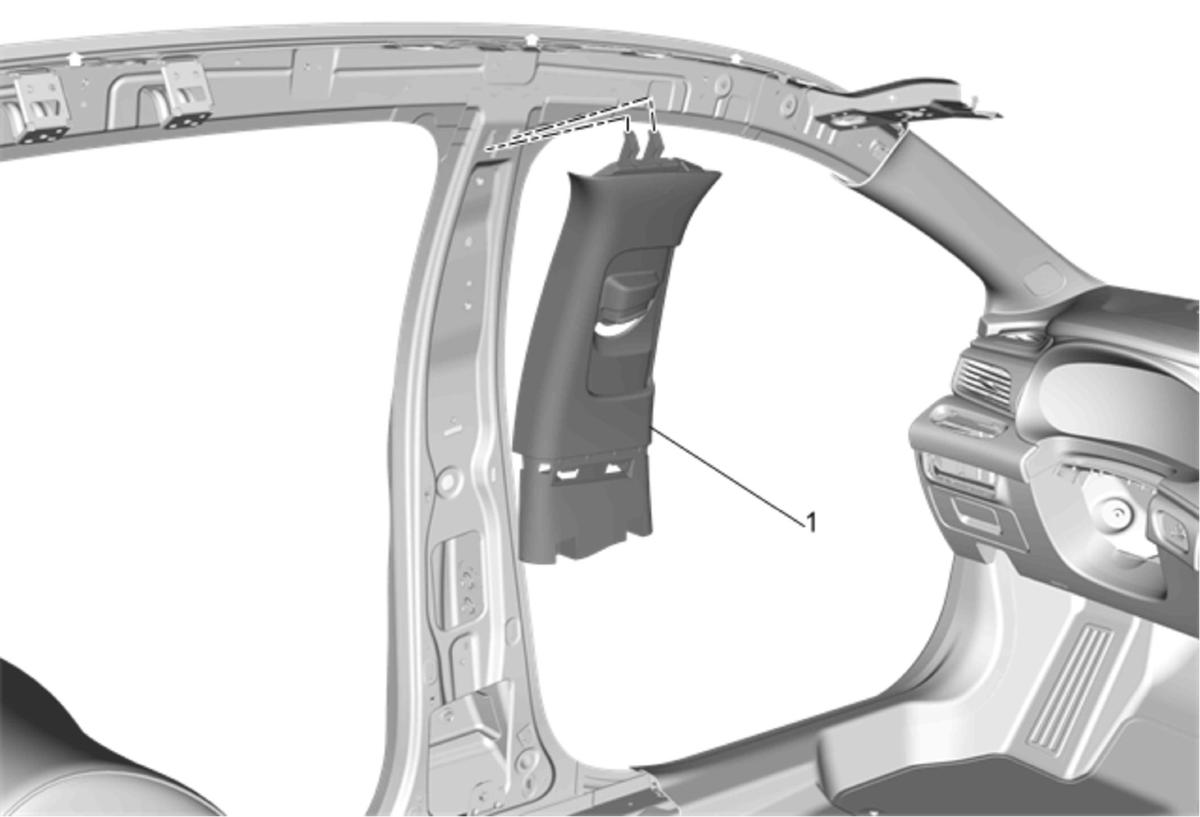

Fig 1: Center Pillar Upper Trim Panel
GM4324874Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Center Pillar Lower Trim Panel Replacement
  2. Front Seat Belt Anchor Plate Bolt@Front Seat Belt Anchor Plate Tensioner Cover - Remove - Front Seat Belt Retractor Replacement
  3. Move the front seat to the full forward position.
1 Center Pillar Upper Trim Panel
