Floor Rear Air Outlet Duct Replacement - Left Side (Rear CJ2)

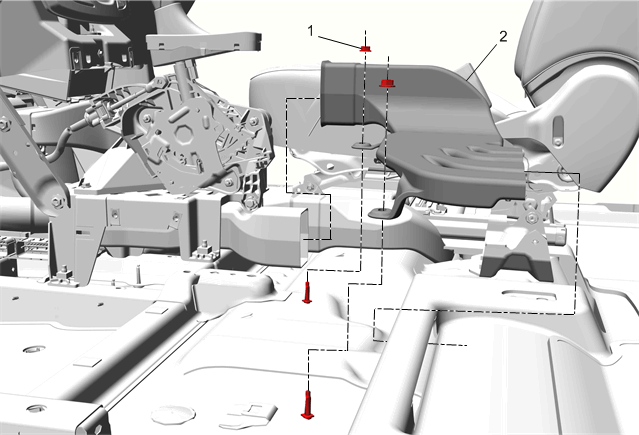

Fig 1: Floor Rear Air Outlet Duct - Left Side (Rear CJ2)

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Front Floor Console Replacement Front Floor Panel Carpet Replacement - Left Side
1	Floor Rear Air Outlet Duct Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  5.0 N.m (44 lb in)
2	Floor Rear Air Outlet Duct - Left Rear
