Floor Rear Air Outlet Duct Replacement - Left Side (Front)

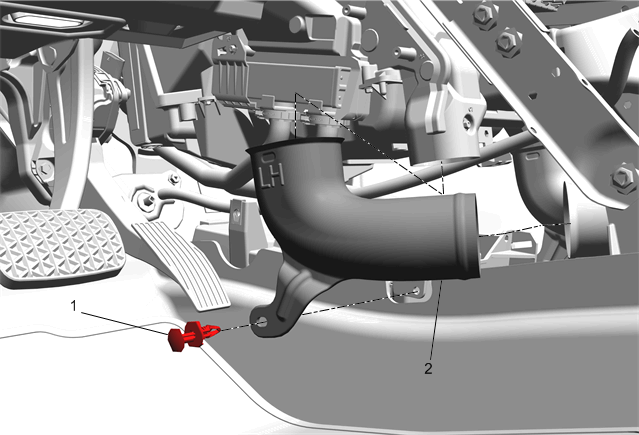

Fig 1: Floor Rear Air Outlet Duct - Left Side (Front)

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Front Floor Console Extension Panel Replacement - Left Side
1	Floor Rear Air Outlet Duct Retainer
2	Floor Rear Air Outlet Duct - Left Front
