Quarter Window Trim Finish Panel Replacement

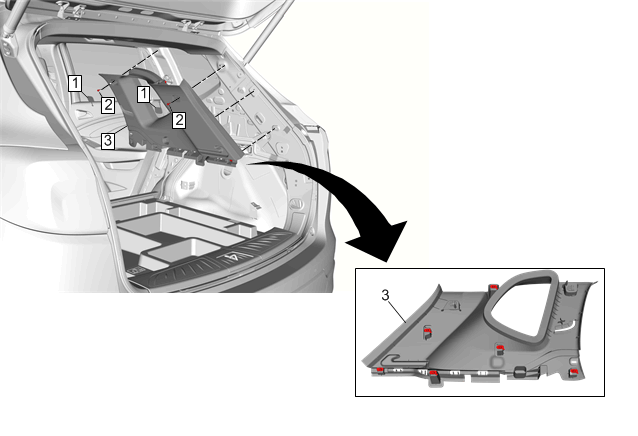

Fig 1: Quarter Window Trim Finish Panel
GM3939208Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. SIR Disabling and Enabling
  2. Quarter Lower Rear Trim Panel Replacement
  3. Remove the rear seat lower anchor plate bolt on the side of the trim panel being replaced Rear Seat Belt Retractor Replacement
1 Quarter Window Trim Finish Panel Bolt Cap (Qty: 2)
2 Quarter Window Trim Finish Panel Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
3 Quarter Window Trim Finish Panel

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Route the seat belt through trim panel.
