Quarter Lower Rear Trim Panel Replacement

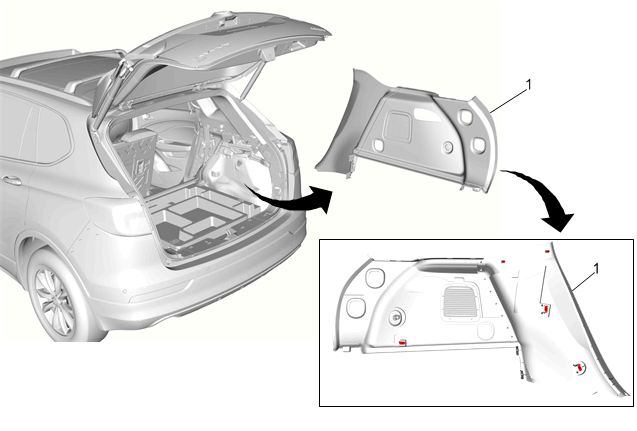

Fig 1: Quarter Lower Rear Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Liftgate Sill Garnish Molding Replacement Rear Compartment Floor Panel Front Trim Replacement Luggage Shade Replacement Rear Side Door Sill Garnish Molding Replacement Cargo Tie Down Loop Replacement Rear Seat Back Latch Release Handle Bezel Replacement
1	Quarter Lower Rear Trim Panel Procedure Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel from the quarter inner panel.

Callout

Component Name

Preliminary Procedures

Liftgate Sill Garnish Molding Replacement
Rear Compartment Floor Panel Front Trim Replacement
Luggage Shade Replacement
Rear Side Door Sill Garnish Molding Replacement
Cargo Tie Down Loop Replacement
Rear Seat Back Latch Release Handle Bezel Replacement

Quarter Lower Rear Trim Panel
Procedure
Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel from the quarter inner panel.
