Center Pillar Upper Trim Panel Replacement

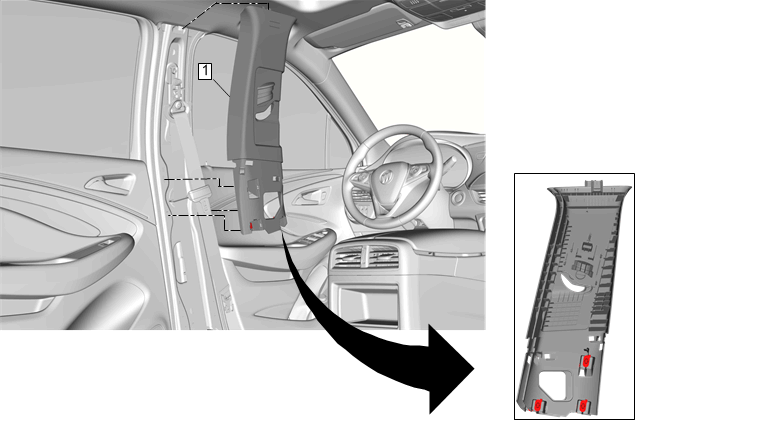

Fig 1: Center Pillar Upper Trim Panel
GM3931377Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. SIR Disabling and Enabling
  2. Center Pillar Lower Trim Panel Replacement
  3. Remove the driver or passenger seat belt anchor plate tensioner cover and fastener Front Seat Belt Retractor Replacement
  4. Move the seat to the full forward position.
1 Center Pillar Upper Trim Panel

Procedure

  1. Pull the trim panel toward the inside of the vehicle to disengage the retainers.
  2. When replacing the center pillar upper trim panel, feed the seat belt through the panel.
