Center Pillar Lower Trim Panel Replacement

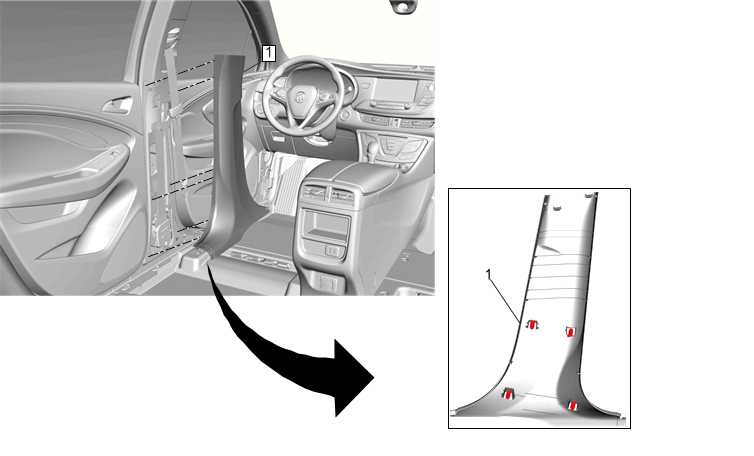

Fig 1: Center Pillar Lower Trim Panel
GM3931500Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Sill Garnish Molding Replacement
  2. Rear Side Door Sill Garnish Molding Replacement
  3. Move the seat to the full forward position.
1 Center Pillar Lower Trim Panel Assembly

Procedure

  1. Pull the trim panel toward the inside of the vehicle to disengage the retainers.
  2. Ensure the seat belt webbing does not become trapped during installation.
