Instrument Panel Center Lower Bracket Replacement

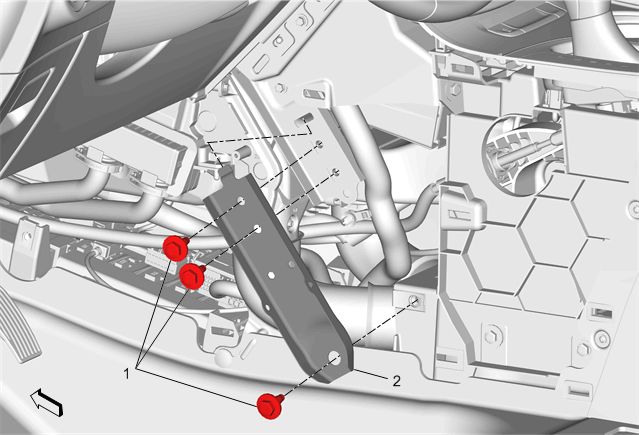

Fig 1: Instrument Panel Center Lower Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Instrument Panel Center Support Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Instrument Panel Center Lower Bracket NOTE: Left side shown, right side similar. Procedure Unclip the wiring harness.

Callout

Component Name

Preliminary Procedures

Instrument Panel Center Support Bracket Bolt (Qty: 3)

CAUTION:

Tighten
22 N.m (16 lb ft)

Instrument Panel Center Lower Bracket

NOTE:

Left side shown, right side similar.

Procedure
Unclip the wiring harness.
