Body Hinge Pillar Garnish Molding Replacement

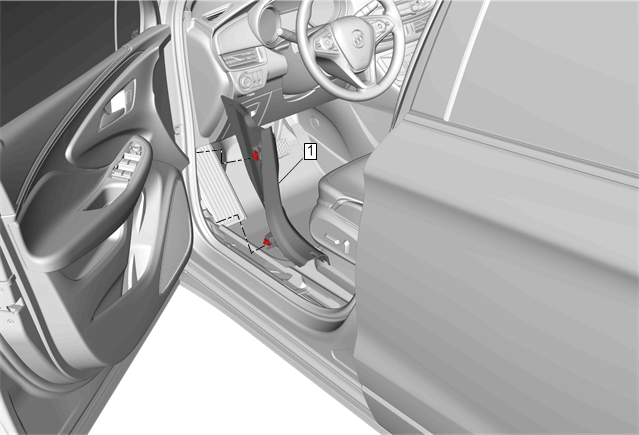

Fig 1: Body Hinge Pillar Garnish Molding
GM3921573Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Hood Primary Latch Release Cable Handle Replacement
  2. Front Side Door Sill Garnish Molding Replacement
1 Body Hinge Pillar Garnish Molding Assembly

Procedure

  1. Pull toward the rear of the vehicle to disengage the integral clips.
  2. Reposition the front floor panel carpet as needed.
