Hood Primary Latch Release Cable Handle Replacement

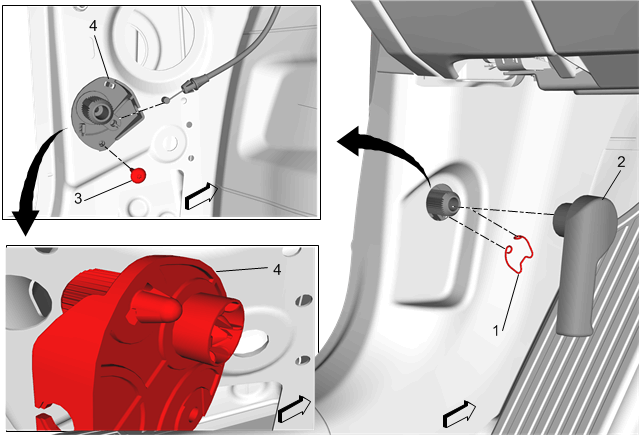

Fig 1: Hood Primary Latch Release Cable Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Primary Latch Release Cable Handle Retainer Clip Procedure Release the hood primary latch release cable handle retainer clip.
2	Hood Primary Latch Release Cable Handle Procedure Remove handle. Body Hinge Pillar Garnish Molding Replacement
3	Hood Primary Latch Release Cable Handle Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
4	Hood Primary Latch Release Cable Handle Procedure Disconnect the cable from the hood primary latch release handle. Using a trim type tool release the retainer on the back side of the hood primary latch release cable handle.
