Intake Air Duct Resonator Replacement (LCV)

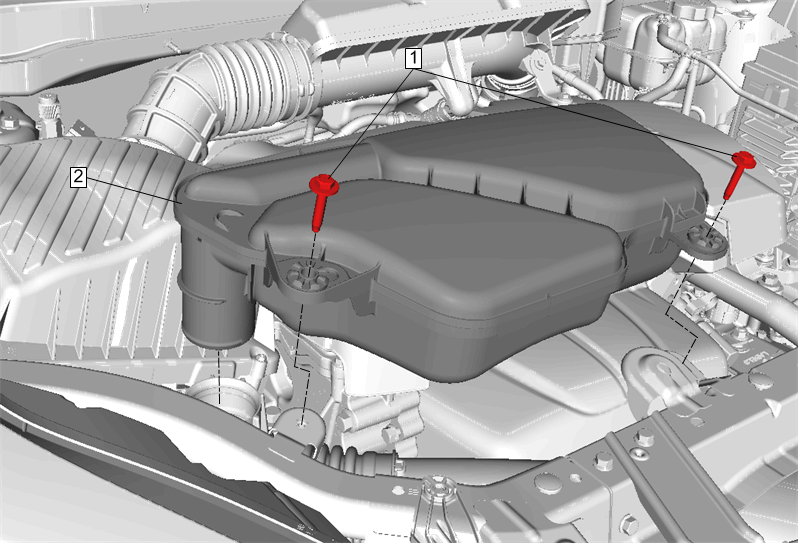

Fig 1: Intake Air Duct Resonator
GM4521729Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Air Duct Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Intake Air Duct Resonator
