Air Cleaner Element Replacement (LCV)

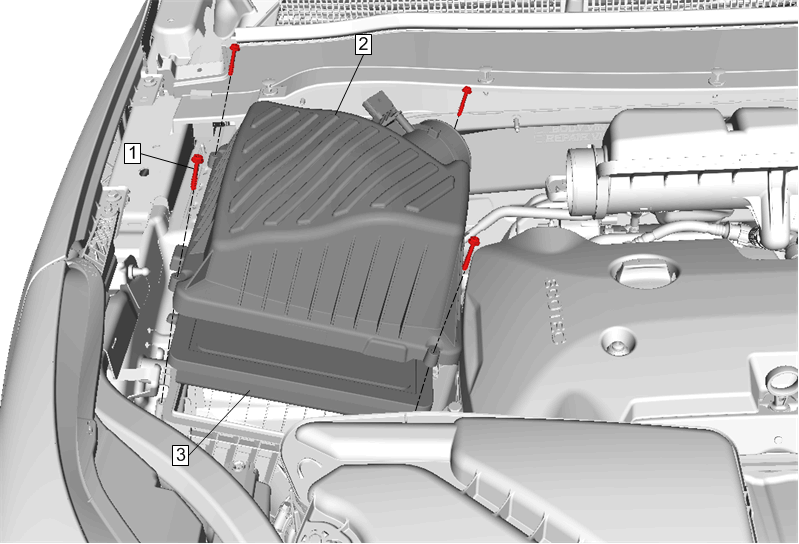

Fig 1: Air Cleaner Element
GM4530773Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement (LCV)
  2. Disconnect the mass airflow sensor electrical connector.
1 Air Cleaner Housing Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (20 lb in)
2 Air Cleaner Housing
3 Air Cleaner Element
