Air Cleaner Outlet Duct Replacement (LCV)

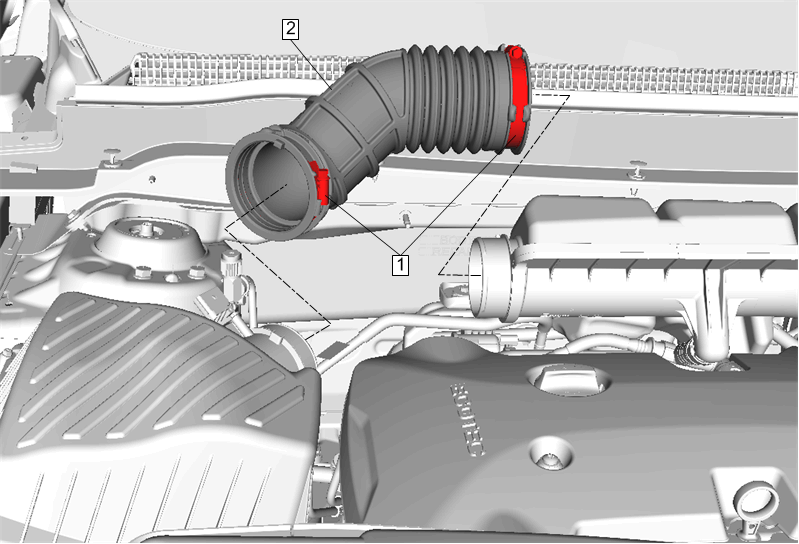

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Outlet Duct Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  3.5 N.m (31 lb in)
2	Air Cleaner Outlet Duct
