Rear Wheelhouse Liner Replacement

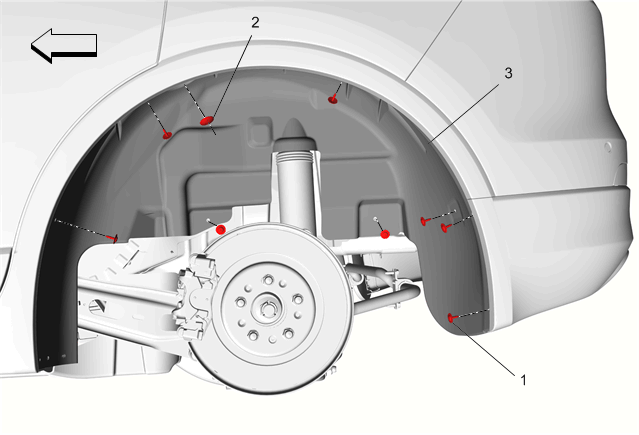

Fig 1: Rear Wheelhouse Liner
GM3825580Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear tire. Refer to Tire and Wheel Removal and Installation .
  3. Remove the rear tire front air deflector. Refer to Rear Tire Front Air Deflector Replacement .
1 Rear Wheelhouse Liner Fasteners (Qty: 8)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Wheelhouse Liner Plastic Retainer
3 Rear Wheelhouse Liner
