Rear Tire Front Air Deflector Replacement

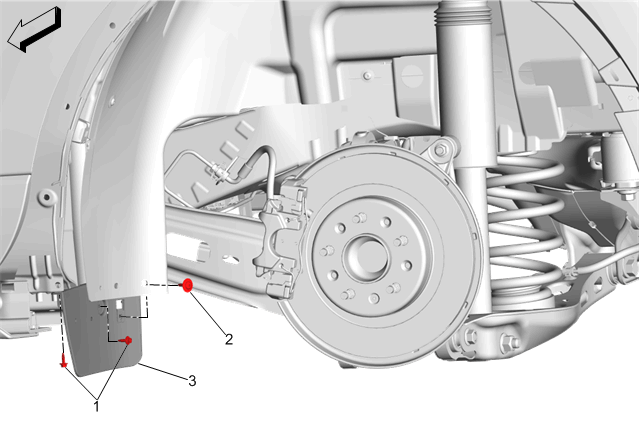

Fig 1: Rear Tire Front Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove Rear Wheel Opening Molding. Refer to Rear Wheel Opening Molding Replacement
1	Rear Tire Front Air Deflector Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Tire Front Air Deflector Fastener Tighten 2.5 N.m (22 lb in)
3	Rear Tire Front Air Deflector
