Front Seat Back Recliner Outer Trim Panel Replacement (Manual)

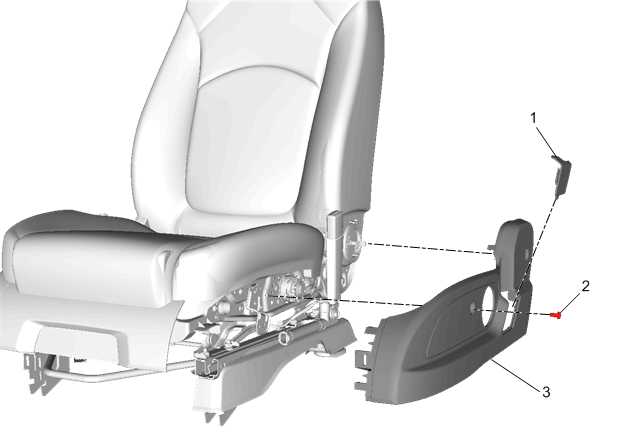

Fig 1: Front Seat Back Recliner Outer Trim Panel (Manual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Seat Back Recliner Handle Replacement . Driver or Passenger Seat Adjuster Handle Replacement .
1	Front Seat Belt Anchor Finish Cover
2	Front Seat Back Recliner Outer Trim Panel Retainer CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
3	Front Seat Back Recliner Outer Trim Panel Procedure Disengage the rear portion of the trim panel first by pulling outward at the retainer clip locations Remove the outer trim panel by gently pulling the trim panel forward off the front finish panel bracket. If replacing the trim panel, transfer components as necessary.
