Driver or Passenger Seat Adjuster Handle Replacement

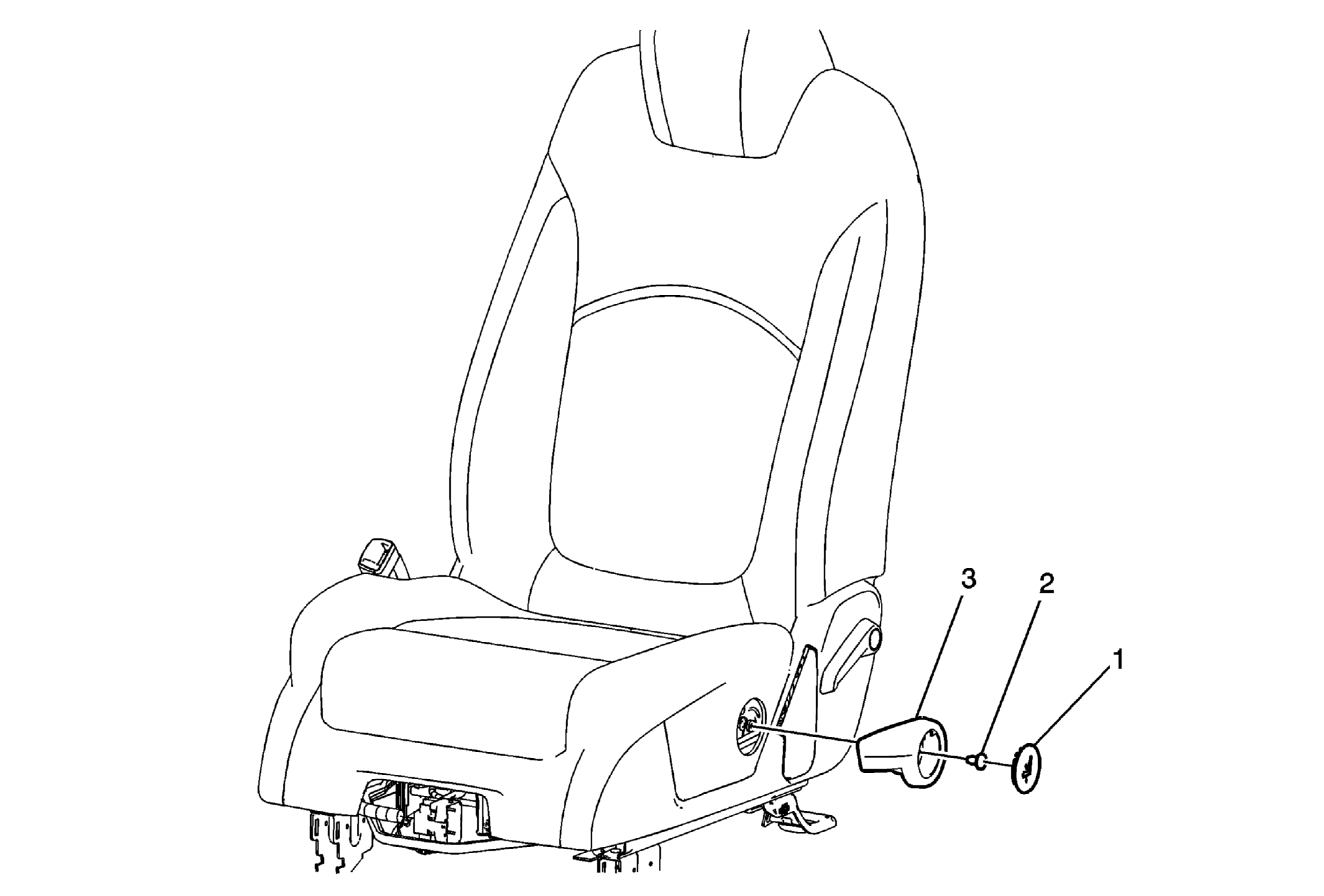

Fig 1: Driver or Passenger Seat Adjuster Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Adjuster Handle Finish Cover Procedure  Insert a non-metallic flat-bladed tool at the top edge of the cover and carefully push downward and outward to remove the cover.
2	Front Seat Adjuster Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
3	Front Seat Adjuster Handle
