Front Bumper Fascia Replacement (Enclave)

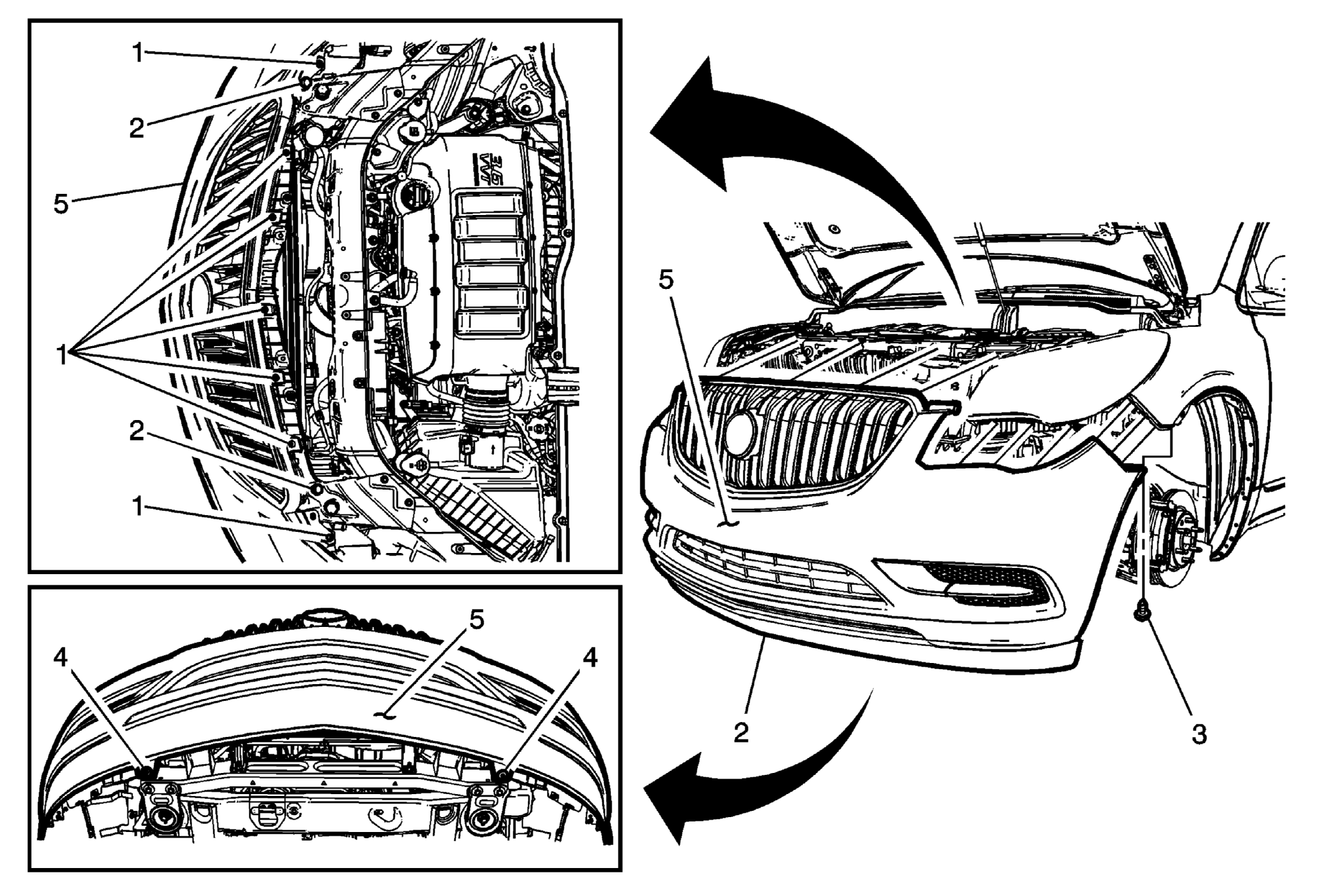

Fig 1: Front Bumper Fascia (Enclave)
GM2869281Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front fender wheel opening molding. Refer to Front Fender Wheel Opening Molding Replacement (Enclave) .
  2. Remove the front wheelhouse liners. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
  3. Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Enclave) .
1 Front Bumper Fascia Upper Screw (Qty: 7)
CAUTION:

Refer to Fastener Caution .
2 Front Bumper Fascia Upper Bolt (Qty: 2)
3 Front Bumper Fascia Side Bolt (Qty: 2)
4 Front Bumper Fascia Lower Bolt (Qty: 2)
5 Front Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.
  2. Disconnect any electrical connectors.
  3. Transfer components as necessary.
