Front Fender Wheel Opening Molding Replacement (Enclave)

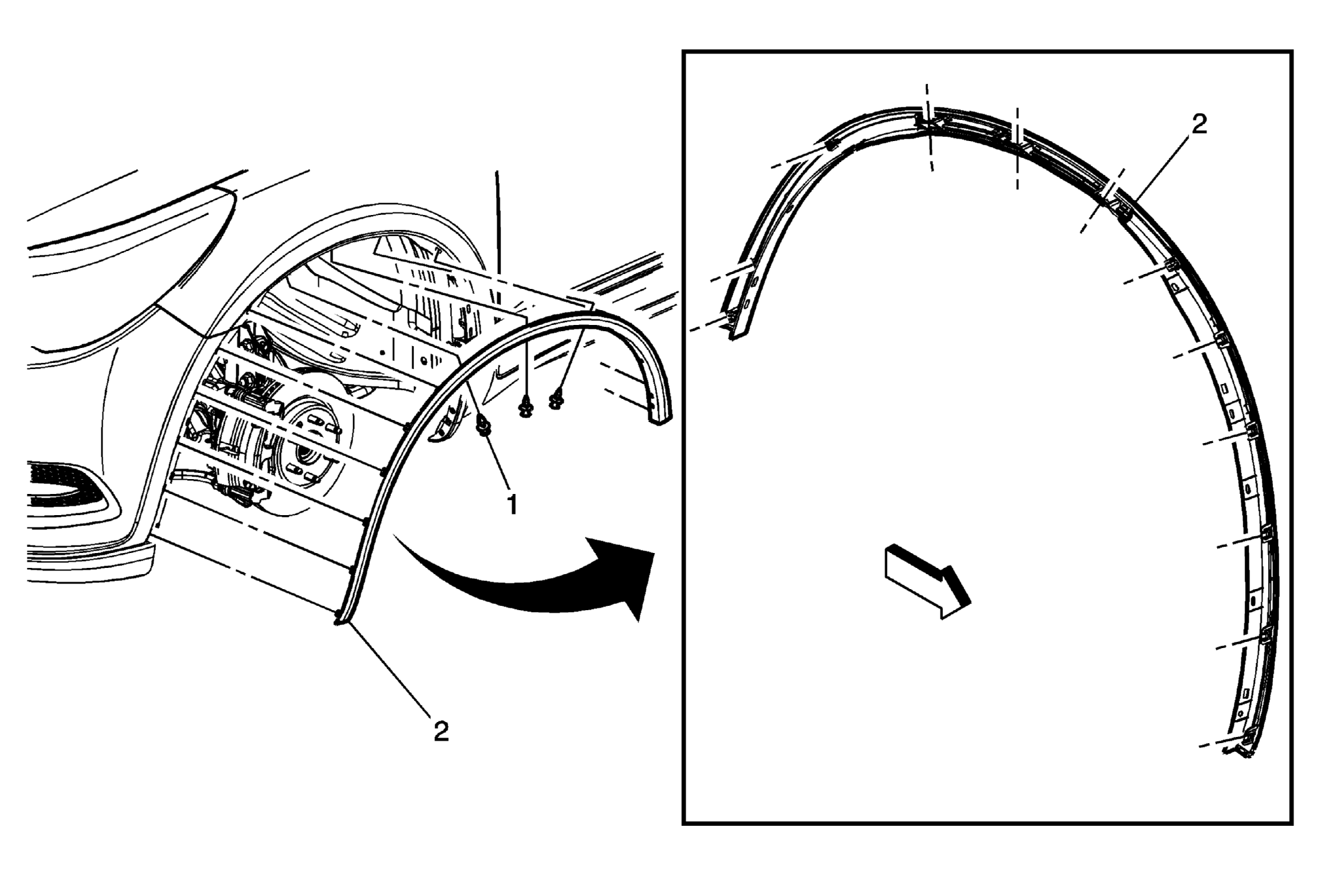

Fig 1: Front Fender Wheel Opening Molding (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
1	Front Fender Flare Retainers (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Front Fender Flare Procedure Pinch and release the 4 retaining clips from the front fender. Release the 5 locking tabs from the front bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .

Front Fender Flare Retainers (Qty: 3)

CAUTION:

Front Fender Flare

Procedure
