Exhaust Manifold Replacement (2.0L LHU)

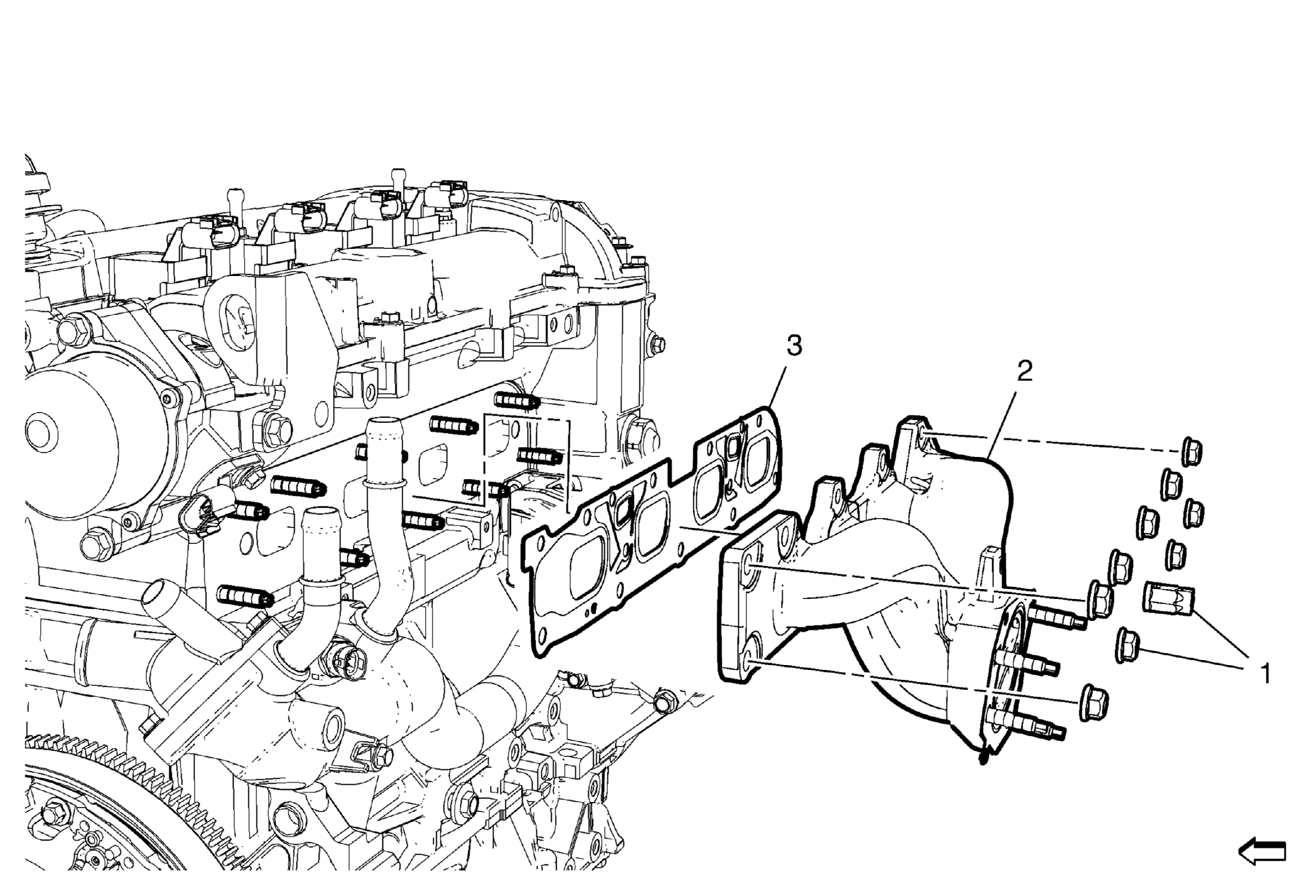

Fig 1: Exhaust Manifold (2.0L LHU)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Protective Goggles and Glove Warning . CAUTION: Refer to Exhaust Flexible Pipe Bending Caution . Preliminary Procedures Remove the turbocharger. Refer to Turbocharger Replacement . Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (2.4L LEA) Exhaust Manifold Heat Shield Replacement (2.0L LHU) .
1	Exhaust Manifold Nut (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten 14 N.m (124 lb in)
2	Exhaust Manifold
3	Exhaust Manifold Gasket Procedure Use a NEW gasket.
