Exhaust Manifold Heat Shield Replacement (2.0L LHU)

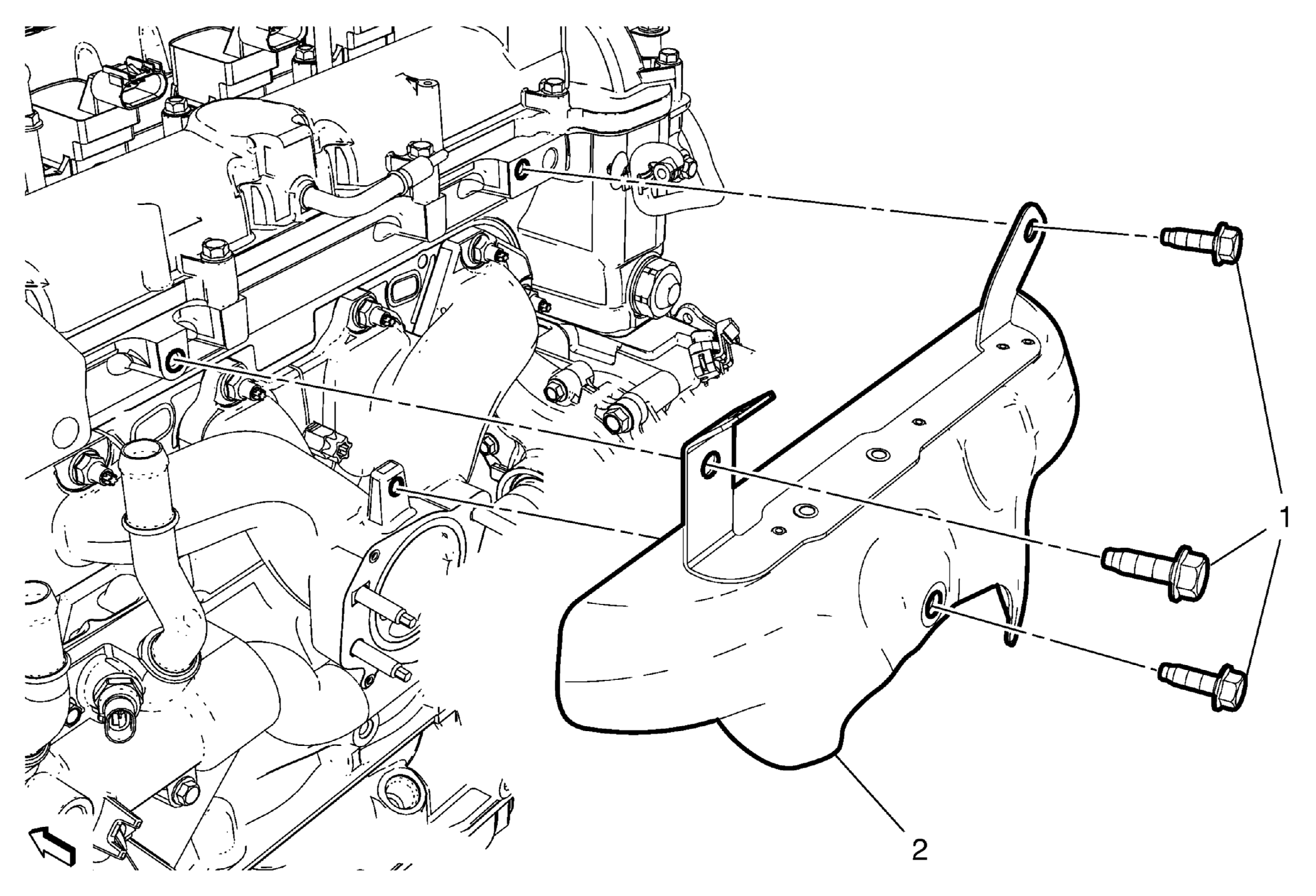

Fig 1: Exhaust Manifold Heat Shield (2.0L LHU)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the turbocharger. Refer to Turbocharger Replacement .
1	Exhaust Manifold Heat Shield Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  25 (18 lb ft)
2	Exhaust Manifold Heat Shield
